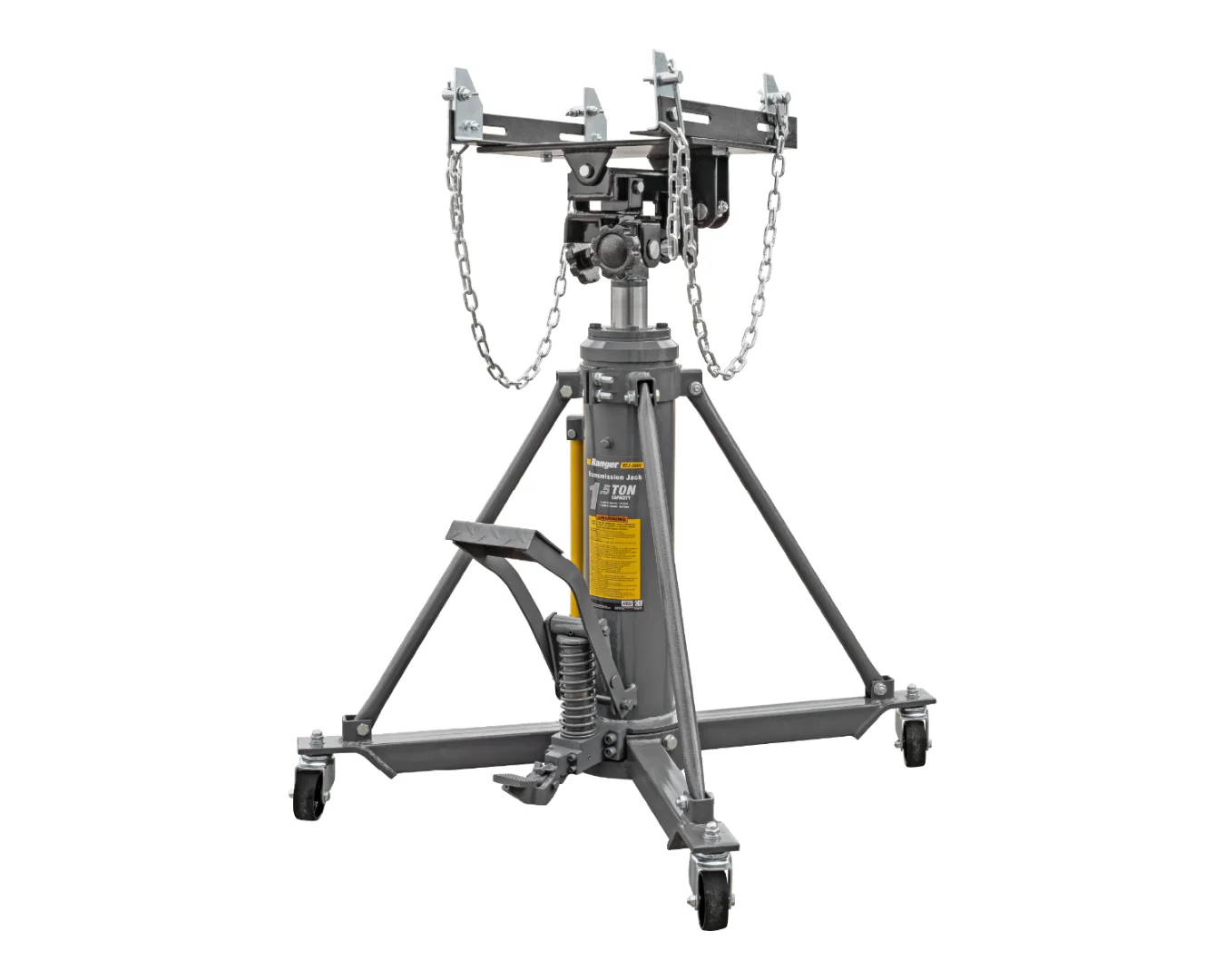

Ranger RTJ-3000 Telescoping Transmission Jack

The RTJ-3000 is a professional-grade, heavy-duty transmission jack designed to handle the most challenging transmission removal and replacement tasks. With an impressive 3,000-lb. lifting capacity, it’s perfect for light trucks, passenger cars, and vans. Featuring double-sealed hydraulics, foot-operated pump, and fully adjustable saddle, this jack ensures easy and secure handling of transmissions. The safety features, including a safety overload system and rugged anchor chains, provide maximum security during heavy-duty jobs. Ideal for use under full-rise two-post and four-post lifts, the RTJ-3000 makes the most difficult transmission jobs a breeze.

Features:

• Lifting Capacity: 3,000 lbs. (1.5 tons)

• Adjustable Saddle: Fully adjustable, tilts in two ways and slides in two ways

• Hydraulic System: Double-sealed for long-lasting performance

• Pump Type: Foot-operated for hands-free operation

• Base Dimensions: Extra-wide base for stability

• Safety Features: Safety overload system and rugged anchor chains

• Maneuverability: Heavy-duty steel swivel casters with a low center of gravity

• Construction: Heavy steel for maximum durability

• Hydraulic Unit: Sealed to prevent contamination

• Saddle Compatibility: Universal saddle adapts to passenger car and light truck transmissions

• Height Adjustment: Fine-thread screws with oversized knobs for easy adjustment

• Lifting Height: Extended two-stage design for a maximum rise of 73"

• Durability: Hardened chrome-moly ram prevents rust and corrosion

• Control: Convenient pull handle for extra stability and control

Specifications:

• Capacity: 3,000 lbs. (1.5 tons)

• Height Range: 37" – 73"

• Construction: Steel with alloy-plated ram

• Casters: Heavy-duty swivel ball bearing

• Pump Type: Foot-operated

• Saddle Type: Fully adjustable, tilting and sliding

• Lifting Capacity – 1st Stage: 3,000 lbs. (1,361 kg)

• Lifting Capacity – 2nd Stage: 2,000 lbs. (907 kg)

• Lowered Height: 35.5" (902 mm)

• Raised Height: 71.5" (1,816 mm)

• Base Dimensions: 34" x 34" (864 mm x 864 mm)

• Shipping Weight: 204 lbs. (92 kg)

• Shipping Dimensions: 23" x 15" x 37" (597 mm x 597 mm x 940 mm)
