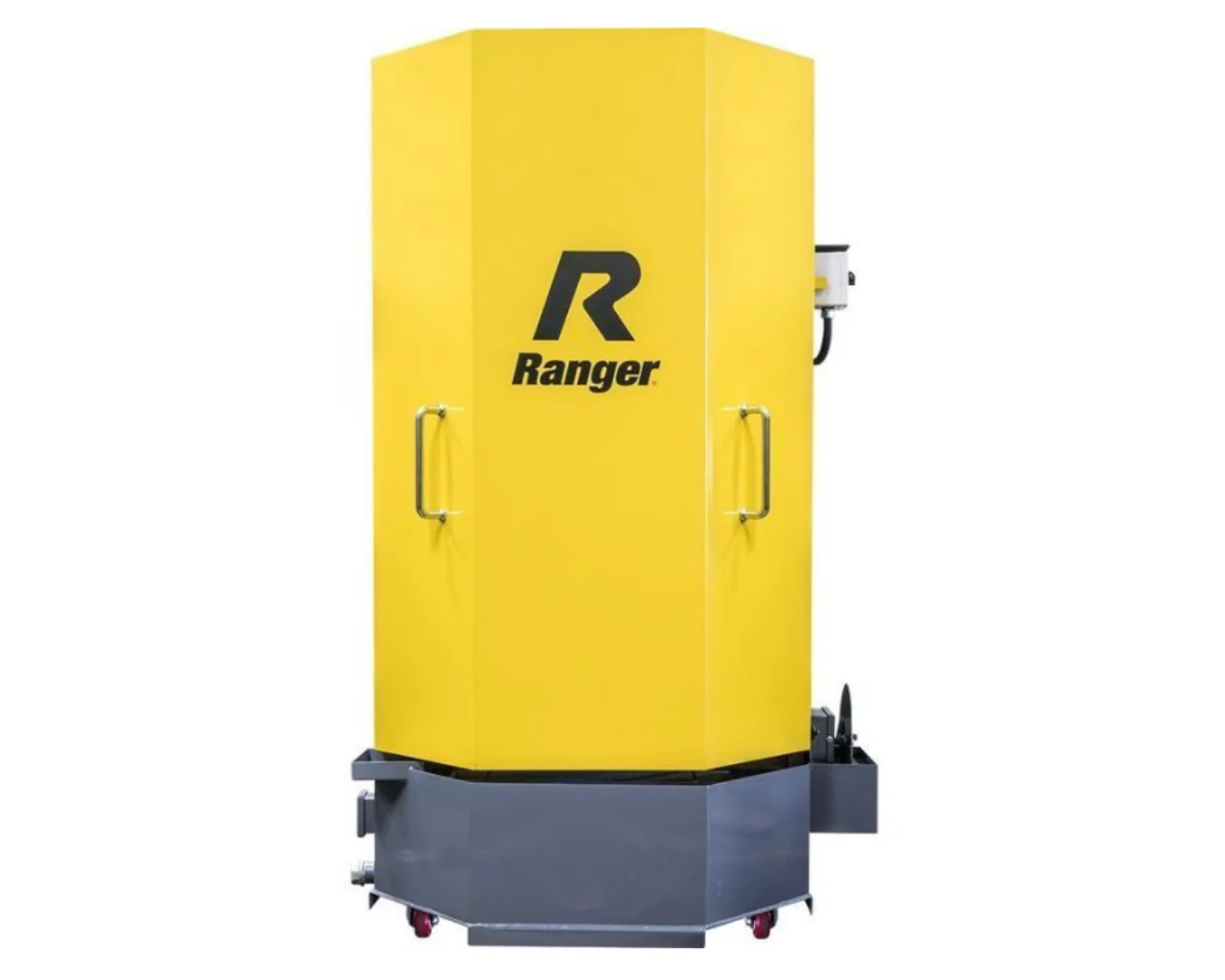

Ranger RS-750D Truck Spray Wash Cabinet

Product image 1

Ranger RS-750D Truck Spray Wash Cabinet

Ranger RS-750D Truck Spray Wash Cabinet With Skimmer / Deluxe / Dual-Heaters / Low-Water Shutoff

The RS-750D Truck Spray Wash Cabinet with Skimmer is a heavy-duty cleaning system designed for large automotive and truck components. It features a massive 53-gallon capacity, 1,000-lb load capability, and dual heaters for rapid heating performance. With advanced features like a neoprene door seal, stainless-steel nozzles, and a low-water shutoff system, this washer ensures efficient, safe, and powerful cleaning. The machine’s durable steel construction, friction-drive turntable, and oil skimming system make it a reliable addition to any professional workshop for degreasing and washing large parts quickly and effectively.

Features:

  • Truck Spray Wash Cabinet with Skimmer / Deluxe / Dual-Heaters / Low-Water Shutoff

  • 53-gallon tank capacity with 1,000-lb load capacity

  • Dual water heaters for fast temperature rise and detergent pre-heating

  • Neoprene door seal ensures leak-proof and steam-tight operation

  • Multi-directional stainless steel spray nozzles for complete cleaning coverage

  • Steel oil skimmer removes oil and keeps detergent clean

  • Low water shut-off system protects pumps and heaters from damage

  • Contamination-proof interior welds prevent debris infiltration

  • NEMA-rated electrical panel with moisture and dust protection

  • Durable friction-drive turntable reduces risk of motor damage

  • Heavy-duty casters with urethane coating for easy movement and non-marring use

  • Safety switch shuts off operation when door is opened

  • 60-minute timer dial for adjustable wash cycles

  • Removable filter basket and debris trap for easy maintenance

  • Includes removable parts tree and small components basket

  • Industrial-grade construction with powder coat finish

  • Automatic operation with adjustable thermostat

  • Large drain pipe for efficient fluid removal

  • Stainless steel handles and free bucket with soap included

Specifications:

  • Overall height: 78" (1,981 mm)

  • Inside height: 54" (1,372 mm)

  • Inside width: 32" (813 mm)

  • Turntable diameter: 30" (762 mm)

  • Tank capacity: 53 gallons

  • Recommended floor space: 44" x 43" (1,118 mm x 1,092 mm)

  • Load capacity: 1,000 lbs. (454 kg)

  • Cycle timer: 0 - 60 minutes

  • Brass nozzles: 22

  • Steel construction: 12 Gauge / .109 thickness

  • Pump output: 70 psi @ 70 gpm

  • Motor: 1 HP / 220 VAC / 60 Hz / 1 Ph

  • Electric heater: 6 kW

  • Water temperature: 160° - 180° F (71° - 82° C)

  • Shipping weight: 746 lbs. (338 kg)

  • Shipping dimensions: 46'' x 46'' x 80'' (1,168 mm x 1,168 mm x 2,032 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
