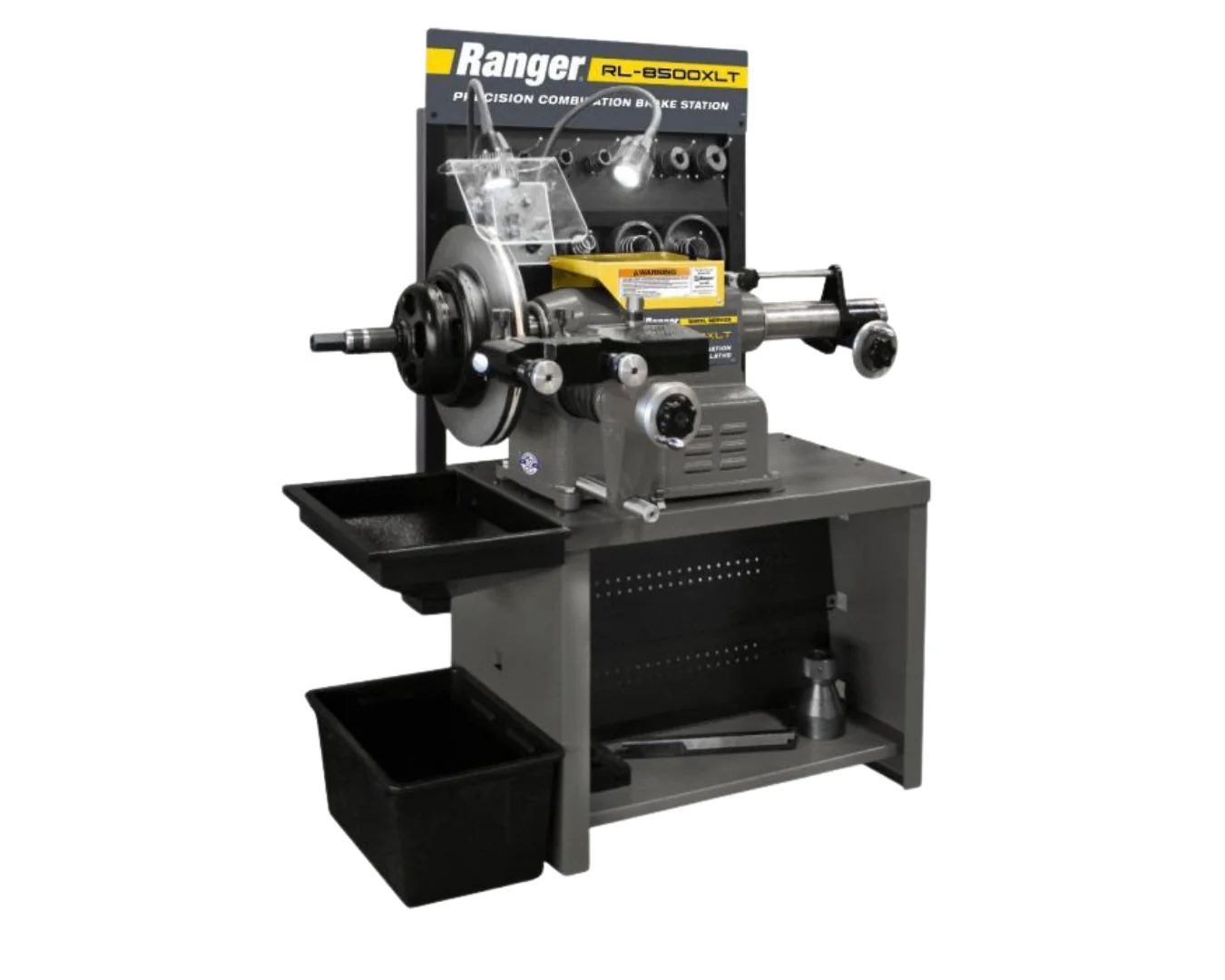

Ranger RL-8500XLT Drum Brake Lathe

The Ranger Heavy-Duty RL-8500XLT Brake Lathe is a premium combination brake lathe designed for maximum performance and precision. Built with an extended capacity spindle capable of turning drums up to 10” deep, this unit handles even the heaviest rotors and flywheels with ease. Featuring DC servo motor controls, the RL-8500XLT eliminates traditional gearboxes, reducing maintenance costs and improving reliability. Its durable cast-iron construction ensures stability and vibration-free operation, while the ergonomic controls and variable feed rate settings allow operators to achieve perfect finishes every time. Complete with a sturdy bench, built-in storage, and advanced Quick-Change Adapter-Plus system, this lathe is engineered for professional shops demanding long-lasting accuracy, power, and efficiency.

Bullet Points:

• Extended capacity spindle handles brake drums up to 10” deep

• Rear bushing provides superior arbor support for heavy-duty work

• DC servo motors replace gearboxes for smooth, maintenance-free operation

• Precision electric control delivers consistent and accurate results

• Quick-Change Adapter-Plus system eliminates traditional bell clamps and cones

• Compatible with cars and trucks (hubless and composite rotors, 2-5/32”–6.25” center holes)

• Twin cutter tools with quick drum-to-rotor changeover capability

• Infinitely variable spindle and cross-feed speed adjustments for optimal cutting

• Simple, ergonomic controls reduce operator fatigue and improve workflow

• Hardened, precision-ground spindle ensures long-term accuracy and performance

• Massive tapered spindle bearings provide excellent weight support

• Splash-lube oil system continuously lubricates bearings for extended service life

• Serpentine belts minimize vibration and ensure quiet, efficient operation

• Independent cross-feed motor eliminates costly shear gear replacements

• Integrated top storage tray keeps tools and adapters within easy reach

• Dual feed motors maximize main motor efficiency

• Deluxe standard adapter package with hubless adapter system for quick setup

• 450-lb. cast-iron body and solid bench reduce vibration for smooth surface finishes

• Adjustable arbor speeds (150 or 200 RPM) for flexibility on different jobs

• Positive rake cutter design enables single-pass finishing for faster results

• Optional truck adapter kit available for expanded capability

Specifications:

• Motor Drive Unit: 115 – 230 VAC, 50 – 60 Hz, 1 Ph, 20 amp

• Max Rotor Thickness: 2.5” (64 mm)

• Max Rotor Diameter: 17” (432 mm)

• Brake Drum Diameter: 6” – 28” (152 mm – 711 mm)

• Max Load with Standard 1” Arbor: 150 lbs. (68 kg)

• Max Load with Optional 1-7/8” Truck Arbor: 250 lbs. (113 kg)

• Spindle Travel: 9-7/8” (248 mm)

• Spindle Speed: 150 rpm – 200 rpm

• Cross Feed Speed: (∞) 0 - .010” per revolution / 0 - 0.25 mm per revolution

• Spindle Feed Speed: (∞) 0 - .020” per revolution / 0 - 0.55 mm per revolution

• Overall Mounted Height: 62” (1,575 mm)

• Spindle to Floor (Mounted): 39-1/2” (1,003 mm)

• Required Floor Space (W x D): 53” x 36” (1,347 mm x 914 mm)

• Shipping Weight (with Bench & Tools): 730 lbs. (331 kg)

• Shipping Dimensions: 46'' x 45'' x 29'' (1,168 mm x 1,143 mm x 736 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
