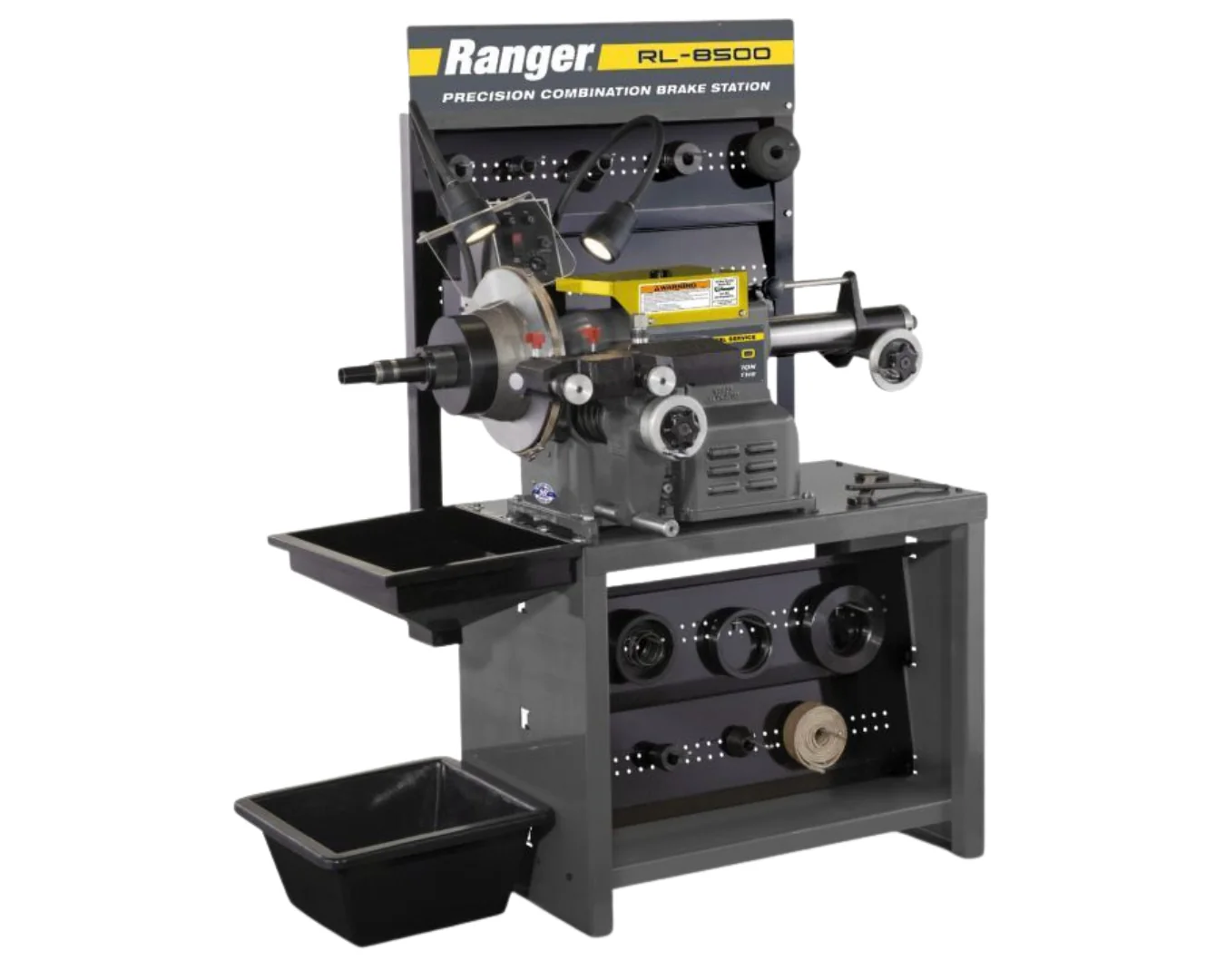

Ranger RL-8500 Drum Brake Lathe

The Ranger RL-8500 Brake Lathe is a high-performance, precision-engineered machine designed for superior rotor, drum, and flywheel resurfacing. Built with a heavy-duty cast iron body and precision-ground components, it offers unmatched durability, stability, and accuracy. Its dual DC servo motors eliminate the need for traditional gear-driven systems, ensuring smoother, quieter, and vibration-free operation. The infinitely adjustable feed and spindle speeds allow users to achieve fast rough cuts or fine precision finishes with ease. Designed for professional shops, the RL-8500 combines innovative technology, reliable engineering, and long-lasting construction, making it one of the most trusted brake lathes in the industry.

Key Features:

• Precision electric DC servo motors for reliable performance and reduced maintenance

• Transmission-free design eliminates mechanical gearboxes and vibration issues

• Infinitely variable spindle and cross-feed speeds for fine or rough cuts

• Quick-Change Adapter-Plus system with built-in springs—no need for bell clamps or cones

• Compatible with hubless drums, rotors (2-5/32"–4"), and composite rotors (4"–6.25")

• Dual servo motors control both cross and spindle feed drives independently

• Twin cutter tool head with micrometer dials for accurate, one-pass finish cuts

• Adjustable speed settings for fast rough cuts or smooth finishing operations

• Ergonomic controls for minimal operator movement and easy learning curve

• Hardened precision-ground spindle resists grooving for long-term accuracy

• Massive tapered spindle bearings provide superior weight support

• “Splash-lube” oil-feed system ensures constant lubrication to bearings

• Serpentine belt drive system reduces noise, chatter, and vibration

• Independent cross-feed motor eliminates shear gear replacements

• Top storage tray for convenient access to tools and adapters

• Separate drum and rotor feed motors maximize efficiency

• 450-lb. cast iron body minimizes vibration and enhances stability

• Quick-change hubless adapter system simplifies mounting of rotors and drums

• Handles standard and composite rotors for most domestic and import vehicles

• Adjustable arbor speeds (150 or 200 RPM) for job flexibility

• Positive rake cutter tip design delivers a one-pass fine finish

• Optional truck adapter kit available for heavy-duty applications

Specifications:

• Motor Drive Unit: 115 – 230 VAC, 50-60 Hz, 1 Ph, 20 amp

• Max Rotor Thickness: 2.5” (64 mm)

• Max Rotor Diameter: 17” (432 mm)

• Brake Drum Diameter: 6” – 28” (152 mm – 711 mm)

• Max Load with Standard 1” Arbor: 150 lbs. (68 kg)

• Max Load with Optional 1-7/8” Truck Arbor: 250 lbs. (113 kg)

• Spindle Travel: 6-7/8” (175 mm)

• Spindle Speed: 150 rpm – 200 rpm

• Shipping Weight with Bench & Tools: 678 lbs. (307 kg)

• Shipping Dimensions: 45'' x 38'' x 29'' (1,143 mm x 965 mm x 736 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
