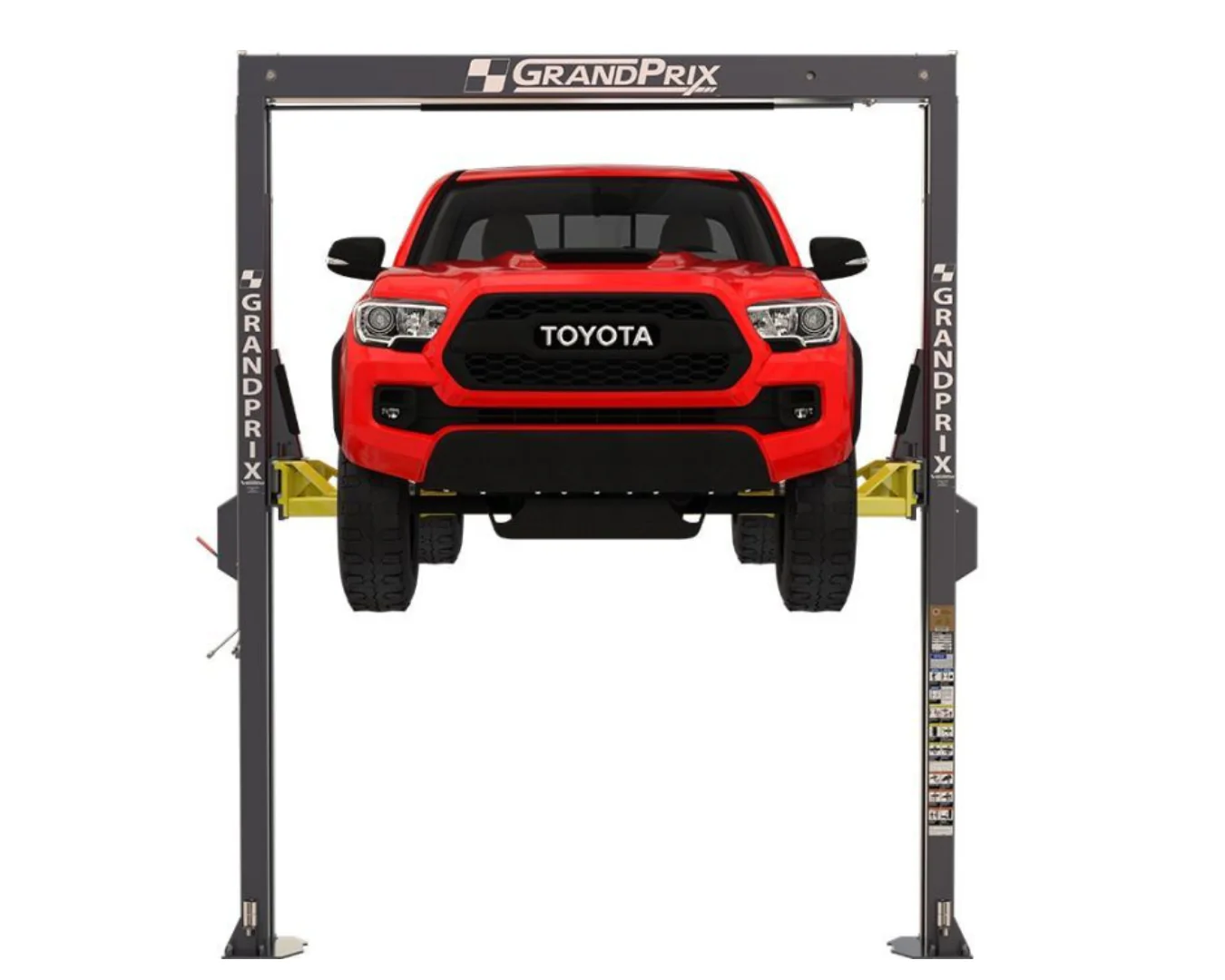

GrandPrix GP-7 Two Post Car Lift

The GP-7 car lift combines compact design with outstanding performance and safety, making it an ideal choice for both commercial shops and home garages. Featuring slim posts that save valuable floor space, this lift provides a powerful 7,000-lb. lifting capacity with a maximum height of 78". Its innovative single overhead hydraulic cylinder works with dual aircraft-grade lifting cables for fast, efficient operation—twice as quick as standard lifts. With a Bi-metric™ arm system for both symmetric and asymmetric loading, redundant safety cables, and automatic locking mechanisms, the GP-7 delivers dependable, high-speed lifting for vehicles ranging from sports cars to light trucks.

• 7,000-lb. lifting capacity

• Full-height, slim-post design saves floor space

• Reaches 78" lifting height twice as fast as other lifts

• Single overhead hydraulic cylinder with dual aircraft lifting cables

• Four lifting cables with redundant safety backup

• Bi-metric™ arms allow symmetric and asymmetric loading

• Telescoping Low-Pro™ arms for sports cars

• Automatic arm restraints for secure operation

• Single release-point operation for convenience

• Taller lift carriages for added support

• Automatic safety locks and multiple lock positions

• Ideal for commercial and home garage use

Specifications:

• Lifting Capacity: 7,000 lbs. (3,175 kg)

• Rise:

  • A. Rise: 74" (1,880 mm)

  • B. Rise + Pad: 78" (1,981 mm)

  • C. Rise + Pad + Adapter: 80.75" (2,051 mm)

  • D. Min Height + Pad: 4.75" (120 mm)

• Time to Full Rise: 45 seconds

Outside Dimensions

• E. Height Overall: 150" (3,810 mm)

• F. Width Overall: 124.75" (3,168 mm)

• G. Outside Columns: 119.5" (3,035 mm)

Inside Dimensions

• H. Inside Columns: 110" (2,794 mm)

• I. Drive-Thru Clearance: 98.25" (2,495 mm)

• J. Floor to Overhead Switch: 141.25" (3,556 mm)

Arms & Pads

• K. Front Arm Reach (Min): 27" (686 mm)

• K. Front Arm Reach (Max): 43.75" (1,111 mm)

• L. Rear Arm Reach (Min): 28" (711 mm)

• L. Rear Arm Reach (Max): 47" (1,193 mm)

Max Load per Arm: 1,750 lbs. (794 kg)
Noise Level: 45 dB

Shipping

• Shipping Dimensions: 148" x 24" x 30"

• Weight: 1,512 lbs.
