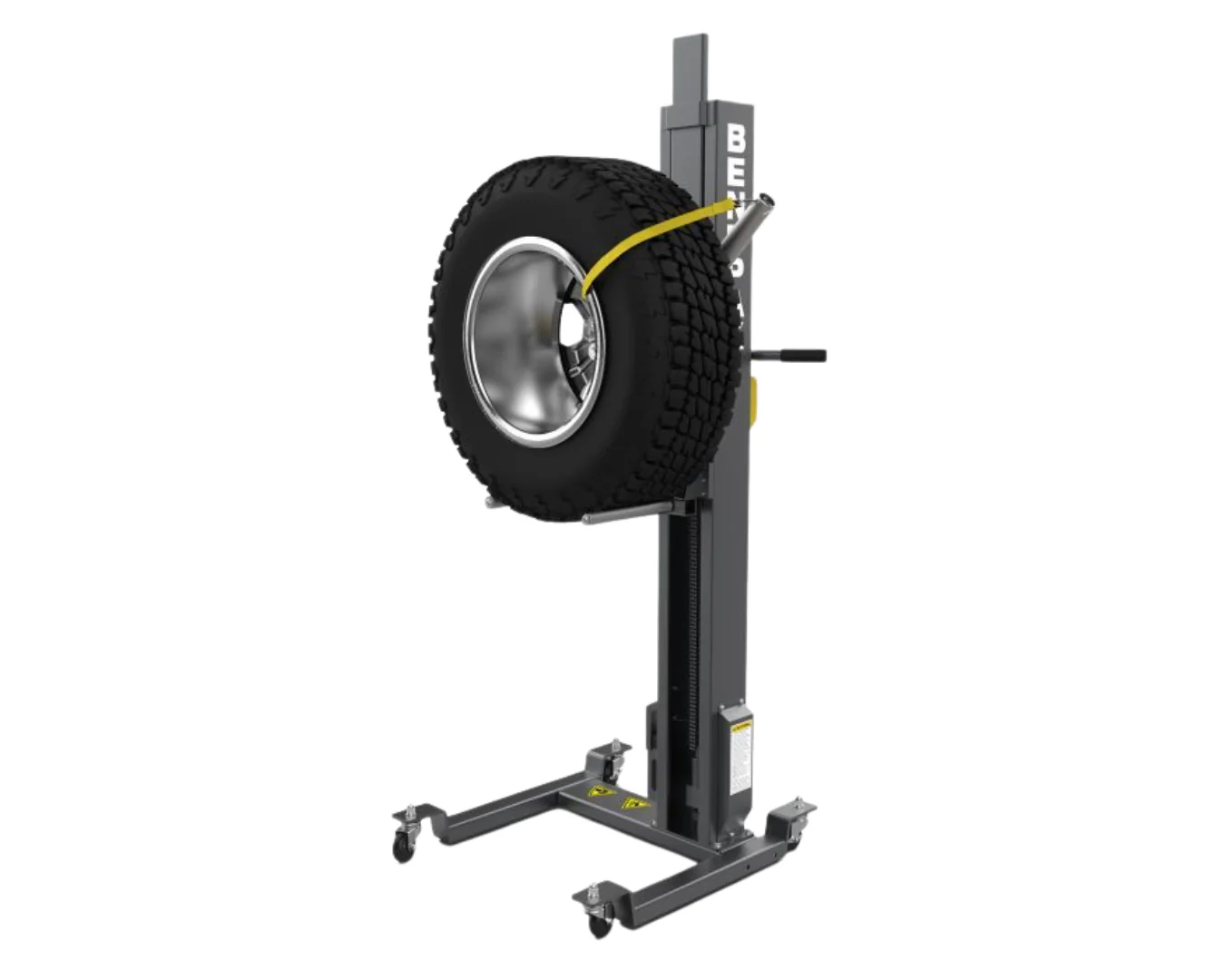

BendPak RWS-200WL Rechargeable Portable Wheel Lift

The BendPak RWS-200WL Portable Wheel Lift takes heavy lifting out of wheel service with cordless, efficient power. Operating on a 24V lithium-ion battery, it delivers the convenience of wireless mobility, eliminating the need for air lines or power cords. With a 200-lb. lifting capacity, it handles heavy-duty wheels effortlessly, making it ideal for tire shops, EV service bays, and fleet facilities. Its fast lifting speed of 1.6 inches per second ensures quick, safe, and precise operation. Featuring a durable, powder-coated steel frame and easy-to-use controls, this wheel lift boosts productivity and safety in your workshop.

Specifications:

• Lifting Capacity: 200 lbs. (90.7 kg)

• Power Source: 24V DC Lithium-Ion Battery

• Lift Speed: 1.6 in./sec (fast and steady)

• Construction: Powder-Coated All-Steel

• Battery: 44.8Ah Industrial Lithium-Ion, 1000 charge cycles

• Charger: Universal 110–240V AC Input

• Control Panel: One-touch UP/DOWN buttons

• Safety Features: Integrated tie-down strap, stable nylon slide blocks

• Mobility: Compact base with heavy-duty casters, locking rear casters

• Compatibility: Works with car lifts or floor jacks, perfect for oversized wheels

• Frame Height: 2.5" low profile for easy wheel positioning

• Additional Features: Onboard 12V outlet, battery status indicator, fast and tool-free setup

• Max. Lift Capacity: 200 lbs. (90.7 kg)

• Lift Range (at rollers): 2.5 in. – 45 in. (65 mm – 1140 mm)

• Max. Extended Height (tip): 85.25 in. (2,165 mm)

• Base Footprint (L × W): 30 in. × 27 in. (760 mm × 686 mm)

• Roller Spacing (center-to-center): 12.5 in. (318.75 mm)

• Raise/Lower Speed: 1.6 in./sec (40 mm/sec)

• Battery Type: 24 VDC Lithium-Ion

• Battery Capacity: 44.8 Ah

• Battery Runtime: Up to 1000 charge cycles (at ≤ 5 A)

• Charger Input Voltage: 100–240 VAC, 50–60 Hz

• Charger Output: 29.4 VDC @ 0.95 A

• Operating Temperature Range: 32 °F – 113 °F (0 °C – 45 °C)

• Caster Size: 3 in. (Two swivel, two locking)

• Unit Weight (assembled): 132 lbs. (60 kg)

Key Features:

• Cordless, battery-powered operation for maximum mobility

• 200-lb. lifting capacity for oversized truck/SUV wheels

• OSHA-compliant safety standards

• Fast, smooth lift with minimal downtime

• Low-profile frame for easy access and maneuverability

• Simple, intuitive operation with a one-touch control panel

• Heavy-duty, all-steel construction for durability

• Perfect for high-productivity use in tire shops and service bays
