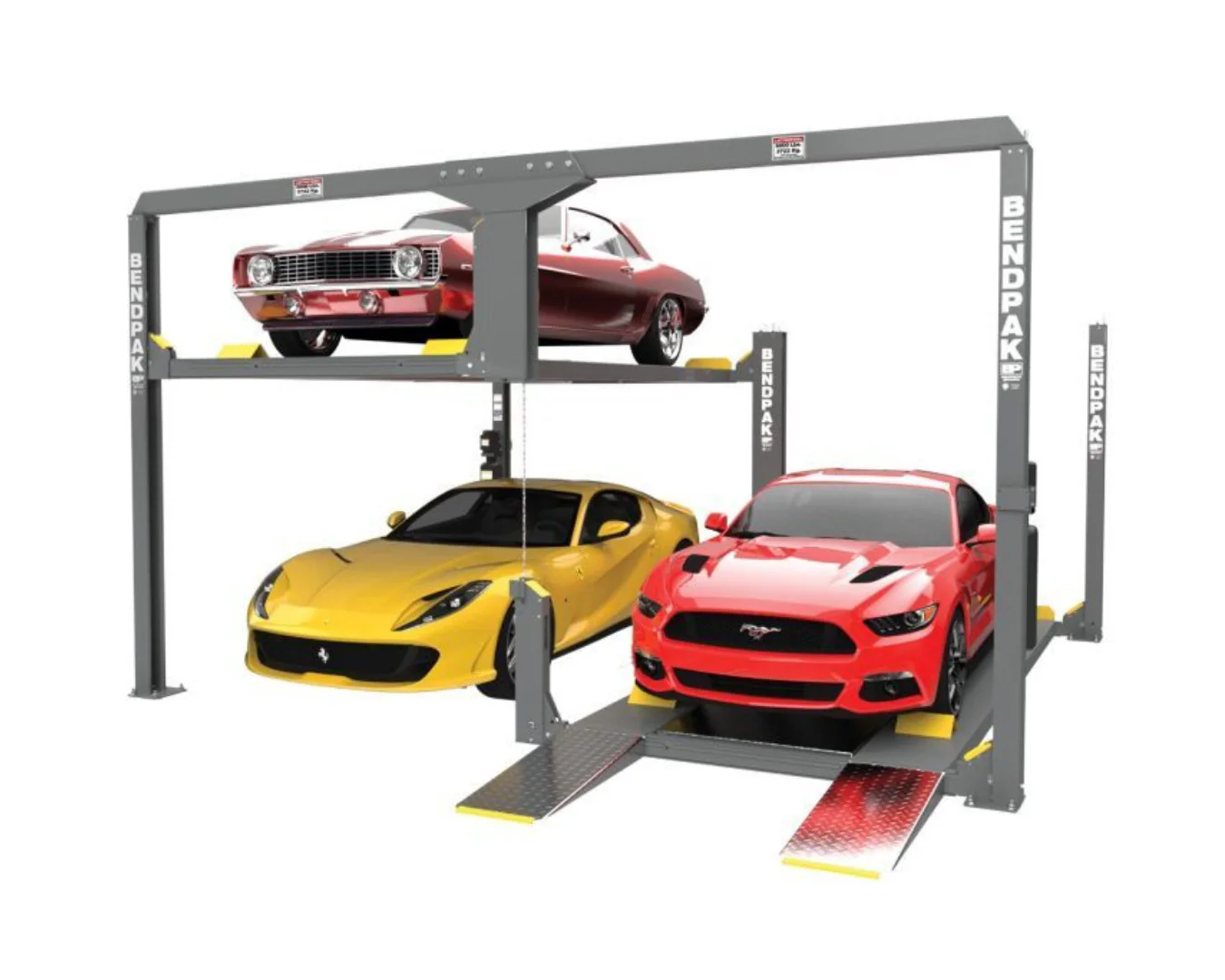

BendPak PL-12000DP Car Parking Lift

The BendPak PL-12000DP and PL-12000DPS parking lifts are advanced solutions for expanding vehicle storage capacity without needing extra building space. Ideal for both commercial and residential applications, these lifts help you maximize parking density, providing instant value. Their mechanical design allows the parking of one vehicle above another, offering optimal storage while minimizing footprint. With a robust 6,000 lb. capacity per platform and a simple yet reliable hydraulic drive system, these lifts promise durability and easy maintenance. The dual independent platforms eliminate the need to shuffle vehicles, offering greater access and flexibility. With over 50 years of expertise in vehicle storage solutions, BendPak ensures that these lifts are engineered for reliable, long-term performance, with minimal service requirements.

Features:

• Dual hydraulic cylinders with heavy-duty galvanized lifting cables

• Multiple locks for multi-height parking settings

• Wide baseplates for maximum stability

• Dual electric-hydraulic power units

• Heavy-duty steel construction

• Front and rear wheel chocks

• 6,000 lb. capacity per side

• Built-in wheel stops

• High-speed lifting

• Tall rise, extended length model (PL-12000DP)

• Suitable for cars, light trucks, motorcycles, and ATVs

• Superstructure with durable powder-coat finish

• Full-width platforms to protect bottom vehicles

• Lightweight, extended aluminum approach ramps for easy storage

Specifications:

• Weight Capacity: 6,000 lbs. per platform

• Drive System: Dual hydraulic

• Platform Design: Full-width for protection

• Material: Rugged, welded steel construction

• Model: PL-12000DP

• Number of Platforms: 2

• Load Capacity per Platform: 6,000 lbs. / 2,722 kg

• Total Width: 221.25" / 5,620 mm

• Outside Length: 198" / 5,029 mm

• Total Length: 242.5” / 6,160 mm

• Total Height: 130.5” / 3,313 mm

• Min. Runway Height: 4.75” / 121 mm

• Maximum Rise: 82” / 2,082 mm

• Width Between Posts: 211” / 5,362 mm

• Width Between Short & Double Posts: 100.25” / 2,546 mm

• Width Between Platforms: 29” / 739 mm

• Width Between Runways: 35” or 41” / 887 or 1,045 mm

• Runway Length: 183” / 4,649 mm

• Runway Width: 19” / 482 mm

• Drive Thru Height: 80.5” / 2,047 mm

• Drive Thru Width: 85” / 2,161 mm

• Outside Edge of Runways: 76 or 82” / 1,930 or 2,083 mm

• Safety Lock Positions: 6

• Power Unit / Motor: 220 VAC, 50/60 Hz, 1 Ph (*Other voltages, including 110V, are available upon request)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
