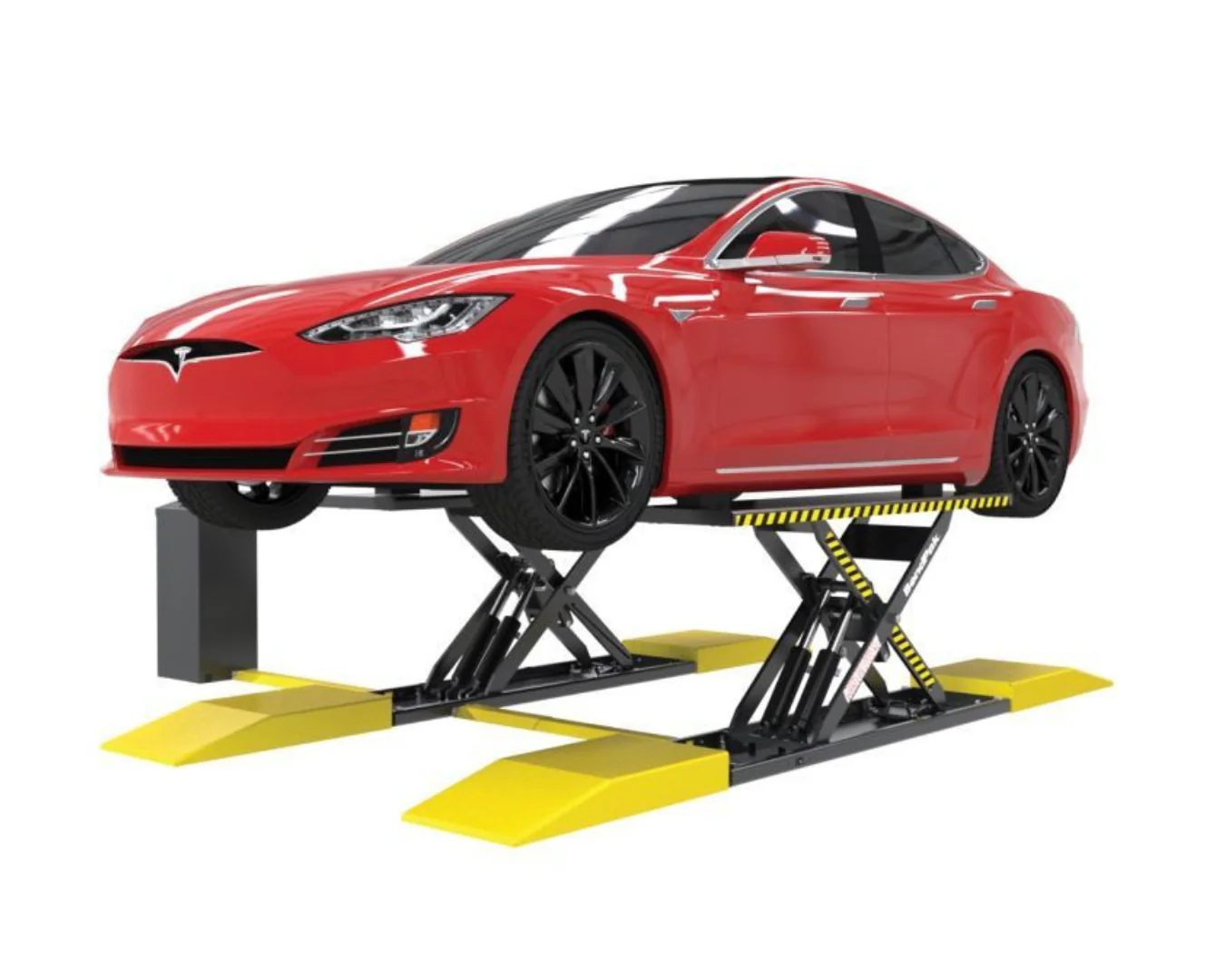

BendPak MDS-6EXT Mid-Rise Scissor Car Lift

The BendPak MDS-6EXT Mid-Rise Scissor Lift offers cutting-edge lifting convenience and reliability. Designed with a 6,000-lb. lifting capacity, it features multiple safety mechanisms to ensure secure and efficient operation. Perfect for professional workshops and garages, this lift guarantees enhanced productivity and ease of use with its user-friendly features.

Key Features:

• Lifting Capacity: 6,000 lbs.

• Safety Lock Bars: Solid steel with automatic engagement during ascent

• Hydraulic System: Dual master hydraulic cylinders and dual equalizing cylinders ensure a safe, level lift

• Push-Button Lock Release: Convenient pneumatic cylinders release safety locks with a simple button press (requires 50 psi, 10 CFM air source)

• Grease Fitting: Zerk grease fitting at the hinge point for easy lubrication

• Contact Blocks: Four durable cushioned-rubber blocks for quick vehicle setup

• Locking Positions: Three adjustable positions for improved ergonomics and productivity

• Finish: Durable powder coat finish for long-lasting protection

Specifications:

• Model: MDS-6EXT

• Platform Design: Steel-scissor frame with four support bars

• Lock Positions: Three

• Pneumatic Cylinder Requirement: 50 psi, 10 CFM air source

• Grease Fitting: Zerk grease fitting at hinge point

• Lifting Capacity: 6,000 lbs. (2,722 kg)

• Lifting Height: 36.75" (934 mm)

• Lifting Height with Blocks: 38.25" (972 mm)

• Lift Platform Dimensions: 19" x 78.7" (484 mm x 2,000 mm)

• Width Between Platforms: Adjustable from 40" to 46" (1,018 mm - 1,168 mm)

• Overall Width: Adjustable

• Overall Length: 104.3" (2,650 mm)

• Lowered Height: 5.25" (133 mm)

• Lifting Time: 35 seconds

• Motor: 208-230 VAC / 60 Hz / 1 Ph

• Shipping Weight: 1,748 lbs. (793 kg)

• Shipping Dimensions: 80" x 67" x 20" (2,032 mm x 1,701 mm x 508 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
