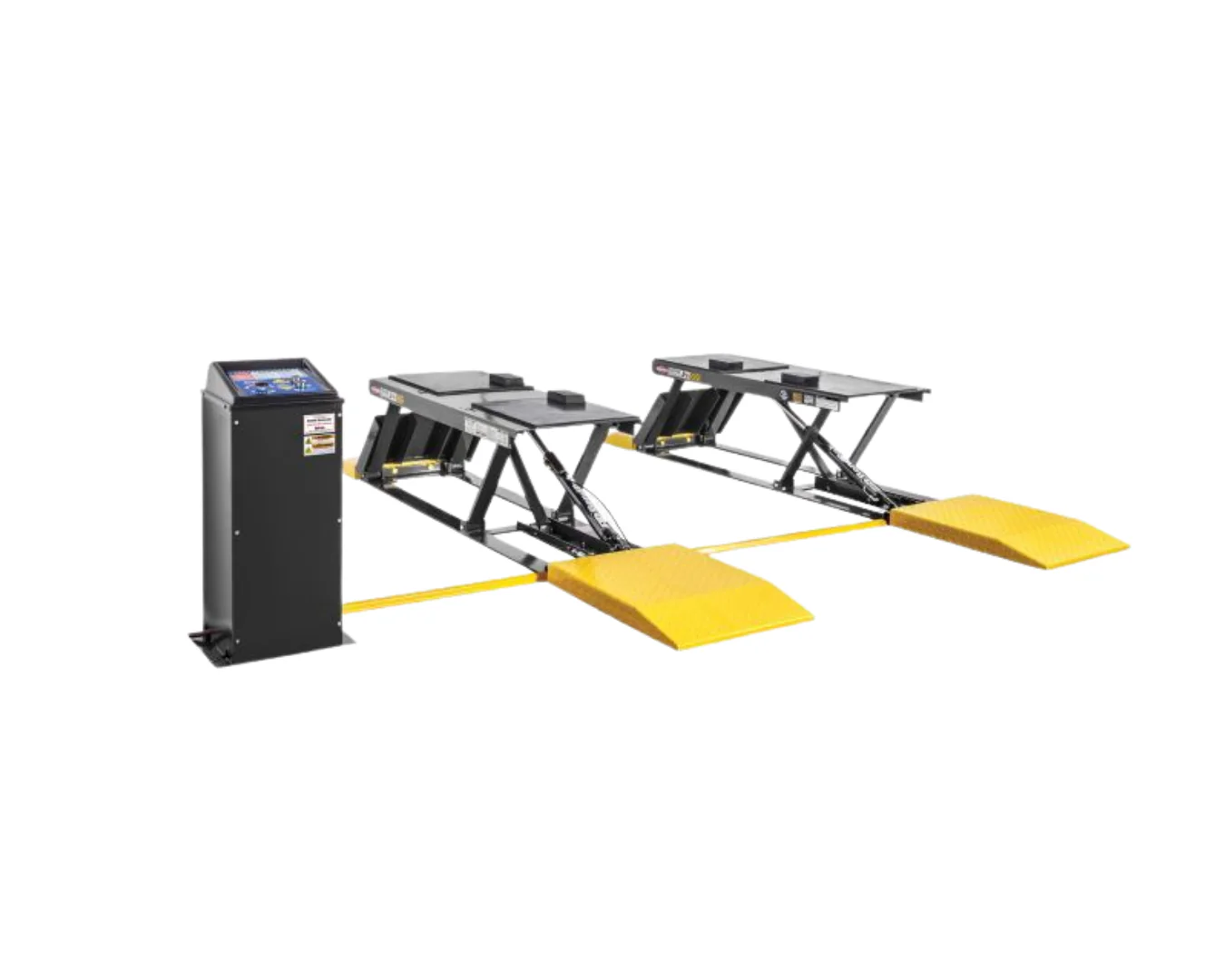

BendPak P-9000LT Low-Rise Scissor Car Lift

The BendPak P-9000LT is the undisputed best low-rise car lift, offering an impressive 9,000 lbs. of lifting capacity with unobstructed access to a vehicle's undercarriage. Perfect for oil-change shops and light truck/SUV service, this lift comes with surface and flush-mount options for ultimate flexibility. Whether you prefer a low-rise or flush-mount design, this lift ensures a smooth, easy operation with its powerful electric-hydraulic system, and it features heavy-duty construction for long-lasting performance.

Key Features:

• Lifting Capacity: 9,000 lbs.

• Versatile Design: Can be used as a surface or flush-mount lift.

• Low-Profile Design: Just 4" high when fully lowered, ideal for tight spaces.

• Heavy-Duty Construction: Rugged steel channel frame for superior support.

• Pneumatic Lock Release: Air locks for instant, safe lowering with a single button push.

• Full Undercarriage Access: Ideal for tire, brake, and oil-change services.

• Optional Arm Adapters: For flexible lifting arm configuration.

• Efficient Power Unit: 1.5 HP electric-hydraulic power unit with dual-pump system.

• Durable Rubber Blocks: Protect vehicle undercarriages and chassis.

• Push-Button Controls: Easy, smooth operation with electronic controls.

• Safety Features: Automatic multi-position safety locks with air release.

• Optional Flush-Mount Conversion: Easy to convert from surface to flush-mount model.

Specifications:

• Max Lifting Height: Low-rise, with optional extended ramps for low-clearance vehicles.

• Power Unit: 1.5 HP electric-hydraulic with dual hydraulic cylinders.

• Construction: Steel channel frame for maximum durability.

• Safety: Pneumatic lock release, multi-position safety locks, and air release.

• Height When Lowered: 4" (Low-profile design).

• Surface Type: Surface or flush-mount options available.

• Weight Capacity Per Axle: 3,000 lbs. per axle.

• Lifting Capacity: 9,000 lbs. (4,082 kg)

• Lifting Height: 24" (610 mm)

• Lifting Height + Block: 27" (686 mm)

• Overall Lift Platform Length: 58.5" (1,484 mm)

• Overall Lift Platform Width: 24" (610 mm)

• Overall Length: 124.6" (3,165 mm)

• Lowered Height: 4" (102 mm)

• Speed of Rise: 55 seconds

• Standard Motor: 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph

• Shipping Weight: 1,502 lbs. (681 kg)

• Shipping Dimensions: 77" x 60" x 24" (1,966 cm x 1,534 mm x 609 mm)

Items Included:

• P-9000LT Lift

• Instruction Manual

• Safety and Training Placard

• Rubber Lift Blocks

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
