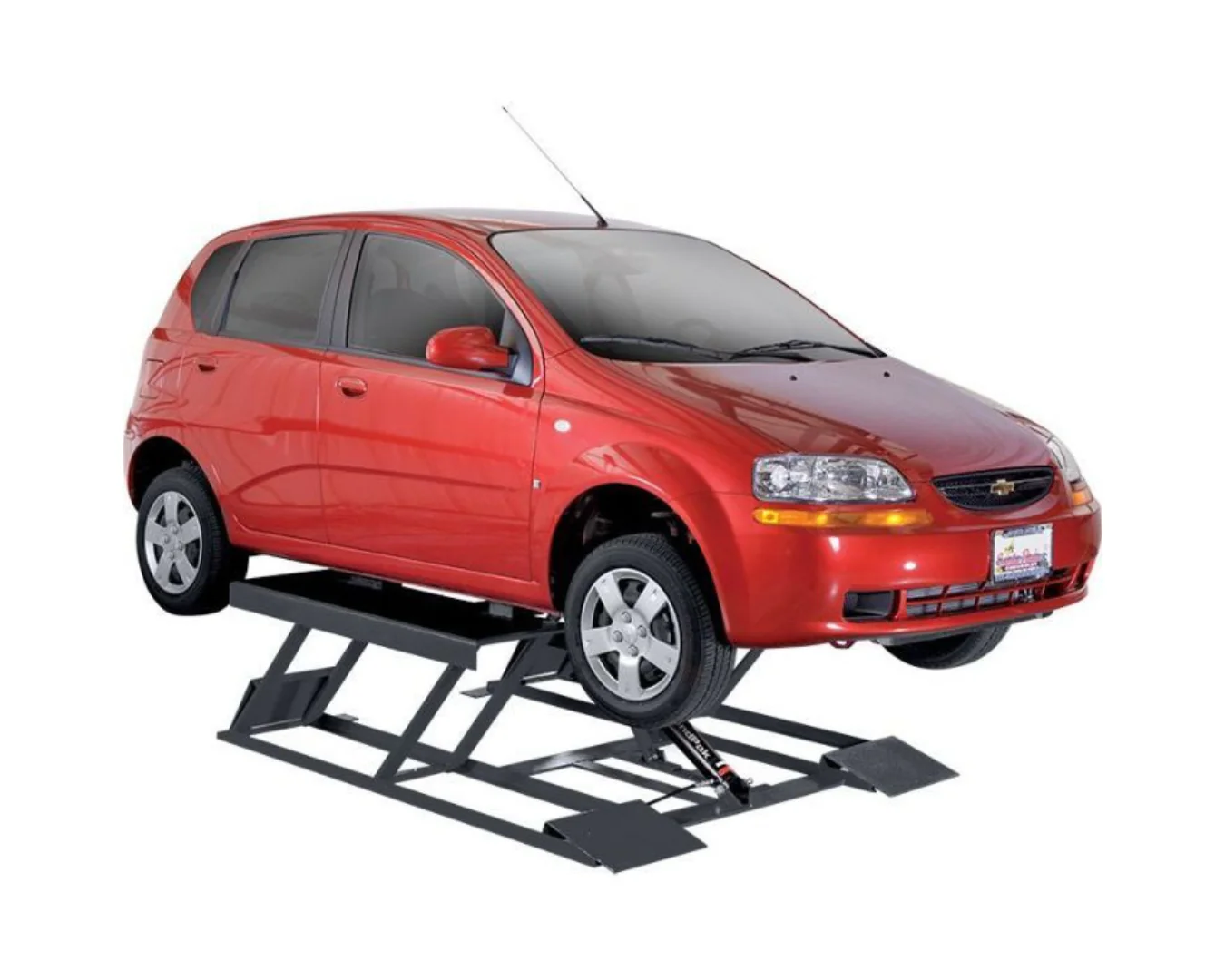

BendPak LR-60 Low-Rise Scissor Car Lift

The BendPak LR-60 Low-Rise Lift offers incredible value and functionality for shops and garages with limited space. It’s designed for quick service on cars and light trucks, with a 6,000-lb. lifting capacity. The compact design and low-profile height allow for easy access to a wide range of vehicles, including those with low stances, without occupying precious floor space. The lift’s durable steel frame, solid rubber lift blocks, and industrial-grade hydraulic cylinders ensure maximum productivity, safety, and reliability for years to come.

Features:

• Lifting Capacity: 6,000 lbs, perfect for cars and light trucks.

• Low-Profile Design: Collapses to just 4", ideal for low-stance vehicles, light trucks, and SUVs.

• Single-Point Safety Release: Ensures simultaneous lock release for safety.

• Dropped Crossbar: Provides added clearance for easy suspension access and wheel changes.

• Steel Channel Frame: Heavy-duty frame with a five-year warranty for durability and stability.

• Hydraulic System: Industrial-grade cylinders with zero-leak technology for enhanced durability.

• Rubber Lift Blocks: High-quality, durable blocks to protect vehicles during service.

• Portable Option (LR-60P): Comes with high-density UHMW rollers for easy portability within your garage or service bays.

• Power System: Electric / Hydraulic

• Safety Locks: Multi-position safety locks

• Rubber Blocks: Included for secure lifting

• Frame Material: Heavy-duty steel channel

• Crossbar: Dropped for added clearance

• Height: Collapsible to 4"

Items Included:

• LR-60 Low-Rise Lift

• Rubber lifting blocks

• Multi-position safety locks

• Instruction manual

Specifications:

• Lifting Capacity: 6,000 lbs. (2,724 kg)

• Max Lifting Capacity / Front Axle: 3,000 lbs. (1,361 kg)

• Max Lifting Capacity / Rear Axle: 3,000 lbs. (1,361 kg)

• Max Lifting Height: 23" (584 mm)

• Max Lift Height with 1.5" Blocks: 24.5" (622 mm)

• Max Lift Height with Optional 3" Blocks: 26" (661 mm)

• Overall Pad Length: 53" (1,346 mm)

• Overall Width: 70.5" (1,791 mm)

• Overall Length: 82" (2,083 mm)

• Lowered Height: 3.5" (89 mm)

• Lifting Time: 35 seconds

• Motor: 110 VAC / 50-60 Hz / 1 Ph

• Lift Pad Dimensions: 18" x 52" (457 mm x 1,320 mm)

• Shipping Weight: 940 lbs. (426 kg)

• Shipping Dimensions: 73" x 83" x 21" (1,854 mm x 2,108 mm x 533 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
