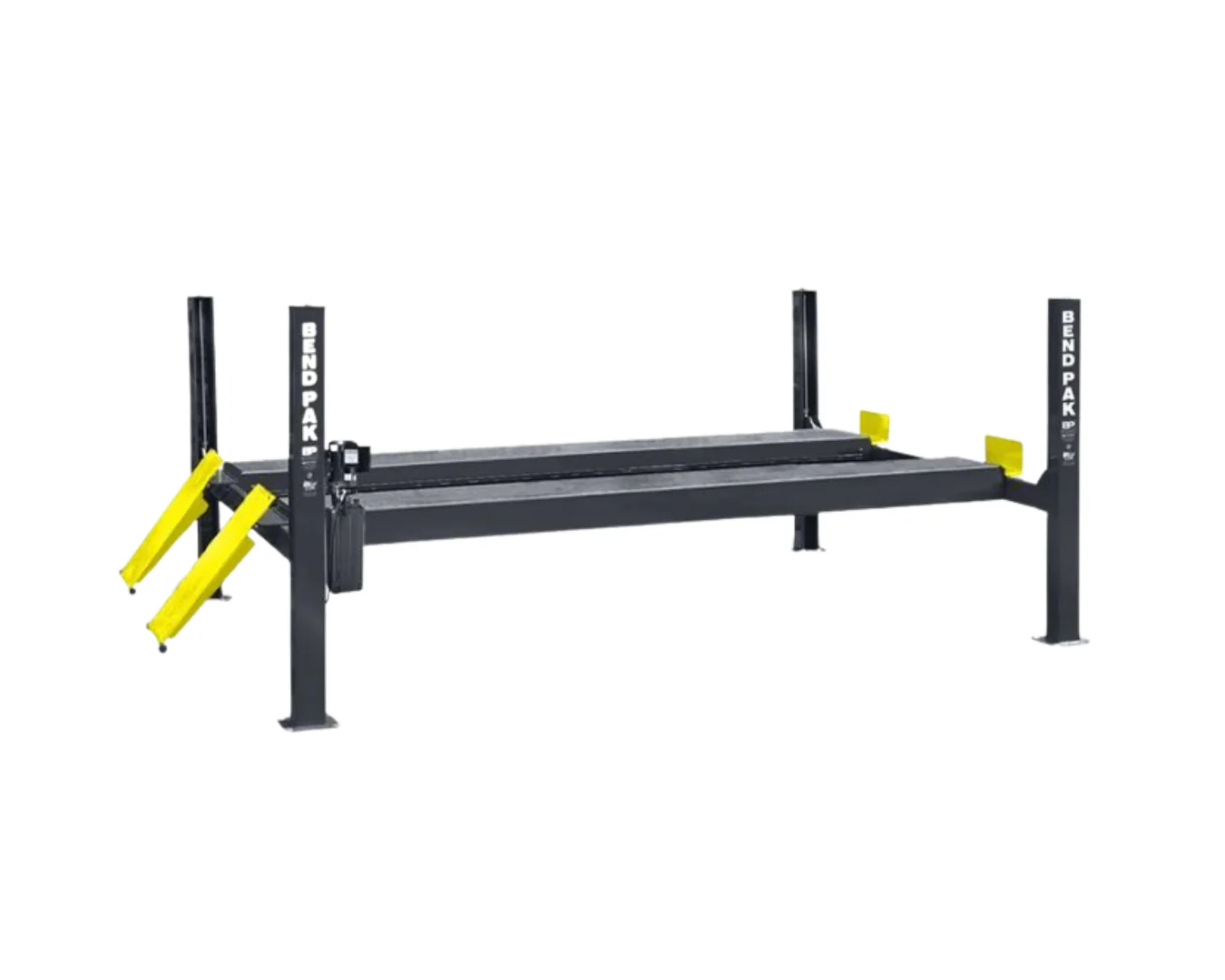

The BendPak HDS-18E four-post lift is designed for heavy-duty lifting, offering an 18,000-lb. capacity ideal for large trucks, vans, SUVs, and even industrial equipment. With extended runways that can handle long wheelbases and a sturdy foundation, this lift is both powerful and versatile. Its professional-grade design ensures that you can safely and efficiently service heavy vehicles while providing an easy-to-use system for maintenance and storage. The HDS-18E's thoughtful design features like its massive base plates and galvanized lifting cables ensure durability and long-term performance, making it an excellent choice for any professional shop.

Bullet Points:

• Lifting Capacity:

  • Maximum Lifting Capacity: 18,000 lbs. (8,164 kg)

  • Max Capacity / Front Axle: 9,000 lbs. (4,082 kg)

  • Max Capacity / Rear Axle: 9,000 lbs. (4,082 kg)

• Runways:

  • Extended Runways: 263" front-to-back

  • Runway Width: 20" (508 mm)

  • Treaded Surface: Ensures a better grip for large tires

  • Runway Finish: Durable matte finish

• Dimensions:

  • Overall Width: 131" (3,327 mm)

  • Overall Length: 249" (6,327 mm)

  • Height of Columns: 108" (2,743 mm)

  • Drive-Thru Clearance: 97.5" (2,478 mm)

  • Width Between Columns: 120" (3,048 mm)

  • Height Between Runways: Adjustable for various vehicle types

• Design & Construction:

  • Large Base Plates: 12" x 12" for maximum stability

  • Cable Sheaves: Supersized 12" diameter for durability

  • Galvanized Lifting Cables: Durable and rust-resistant

  • Grease Nipples: For easy lubrication and maintenance

  • Spring-loaded Safety Locks: Ensures security during lifting

  • Integrated Flow Restrictor: Provides controlled descent in case of hose rupture

• Safety Features:

  • Safety Locks: Multiple adjustable locking positions for added security

  • Second Lock System: Constantly monitors for any failure

• Power System:

  • Power Unit: Maintenance-free electric hydraulic system

  • Convenient Controls: Positioned for easy access and operation

• Optional Accessories:

  • Optional Rolling Jacks: Available for additional lifting support

Specifications:

• Lifting Capacity:

  • Maximum Lifting Capacity: 18,000 lbs. (8,165 kg)

  • Max Capacity / Front Axle: 9,000 lbs. (4,082 kg)

  • Max Capacity / Rear Axle: 9,000 lbs. (4,082 kg)

• Dimensions:

  • Overall Width: 153.5" (3,899 mm)

  • Overall Length: 257" (6,528 mm)

  • Overall Length (Including Ramps): 312.75" (7,944 mm)

  • Height of Columns: 91.25" (2,318 mm)

  • Drive-Thru Clearance: 109" (2,769 mm)

  • Width Between Columns: 133.5" (3,391 mm)

• Runways:

  • Runway Width: 22" (559 mm)

  • Length of Runways: 255.5" (6,490 mm)

  • Width Between Runways: 40" (1,016 mm) or 45.25" (1,149 mm)

  • Runway Centerline: 67.25" (1,708 mm) or 72.5" (1,842 mm)

  • Outside Edge of Runways: 89.25" (2,267 mm) or 94.5" (2,400 mm)

• Rise:

  • Min. Runway Height: 9.5" (241 mm)

  • Max. Rise: 60" (1,524 mm)

  • Max. Lifting Height: 69.5" (1,765 mm)

  • Time to Full Rise: 75 seconds

• Locking:

  • Locking Positions: 13

  • Lock Spacing: Every 4" (100 mm)

• Power:

  • Motor: 220 VAC / 60 Hz. 1 Ph.

  • Noise: 45 dB

• Minimum Wheelbase:

  • Rated Capacity: 185" (4,699 mm)

  • 75% Capacity: 160" (4,064 mm)

  • 50% Capacity: 135" (3,429 mm)

  • 25% Capacity: 110" (2,794 mm)

• Shipping:

  • Weight: 6,003 lbs. (2,722 kg)

  • Dimensions: 265" x 27" x 36" (6,731 mm x 685 mm x 914 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
