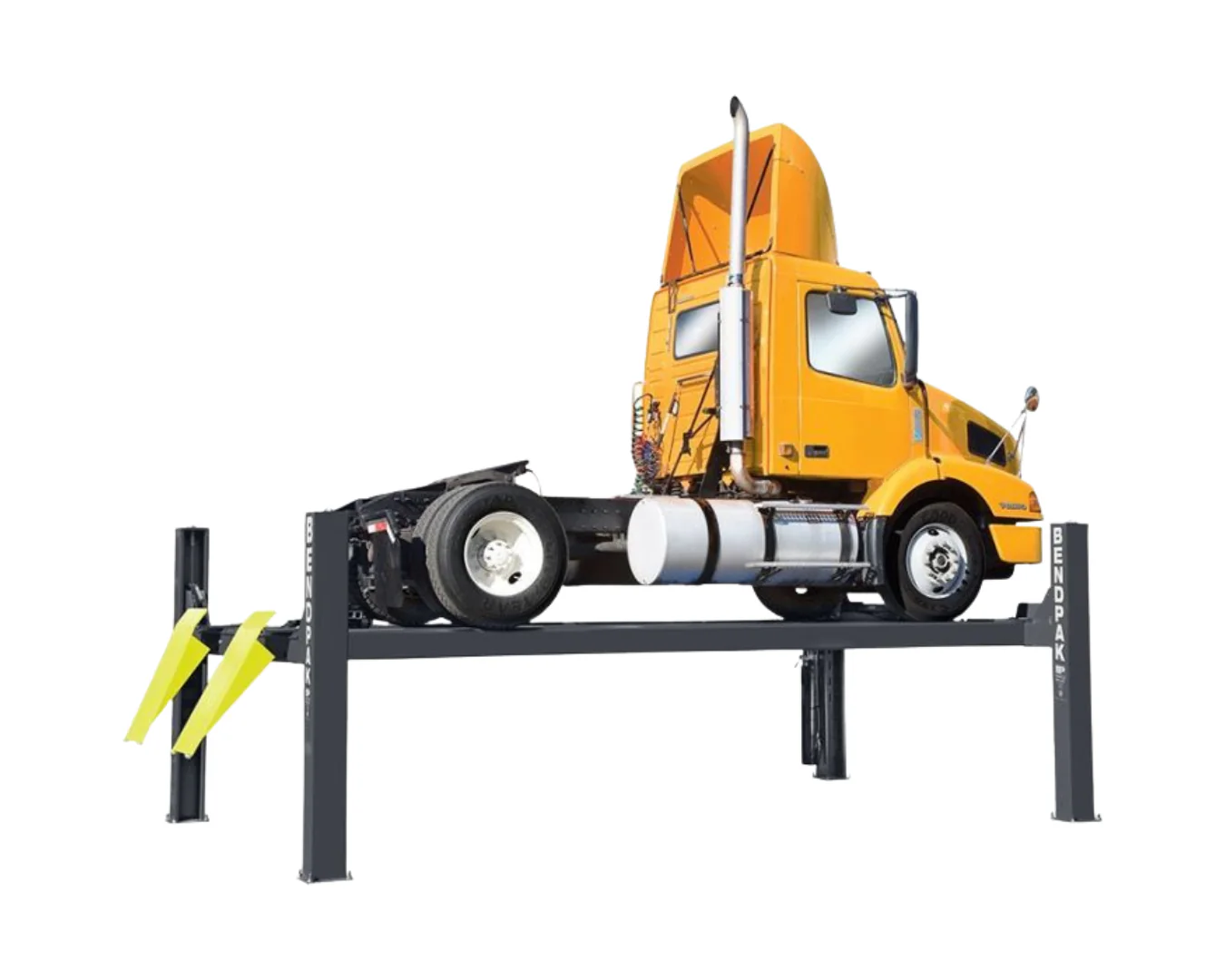

BendPak HDS-27 Four Post Truck Lift

The HDS-27 four-post lift is designed for high-capacity, commercial, and municipal vehicle service, capable of handling a 27,000-lb. weight. It’s perfect for shops that service Class 7 semi-trucks and other heavy-duty vehicles. With enhanced sheaves, durable lifting cables, and reliable safety features, this lift is engineered to deliver consistent, dependable performance. The HDS-27 is CE approved and certified to meet European Standard EN 1493, making it a robust and versatile choice for any heavy-duty workshop.

Key Features:

• Lifting Capacity: 27,000 lbs (12,247 kg)

• CE Approved: Meets European Standard EN 1493

• Sheaves: Supersized 12" diameter cable sheaves for extra strength

• Lifting Cables: Galvanized for added durability

• Hydraulic Cylinder: Single hydraulic under-runway cylinder

• Safety Features: Spring-loaded safety locks with second lock system for enhanced security

• Cable Protection: Fully enclosed lifting cables

• Height Locking: Multiple adjustable height locking positions for versatility

• Power System: Maintenance-free electric hydraulic power system

• Operator Controls: Conveniently positioned for easy access

• Base Plates: 12" x 12" base plates for stability

• Finish: Runways feature a durable matte finish

• Optional Accessory: Optional rolling jack available for additional convenience

• Lifting Capacity:

  • 27,000 lbs. (12,247 kg)

  • Max Capacity / Front Axle: 13,500 lbs. (6,123 kg)

  • Max Capacity / Rear Axle: 13,500 lbs. (6,123 kg)

• Rise:

  • A - Min. Runway Height: 9.5" (241 mm)

  • B - Max. Rise: 60" (1,524 mm)

  • C - Max. Lifting Height: 69.5" (1,765 mm)

  • Time to Full Rise: 75 seconds

• Outside Dimensions:

  • D - Overall Width: 153.5" (3,899 mm)

  • E - Outside Length: 257" (6,528 mm)

  • F - Overall Length: 312.75" (7,944 mm)

  • G - Height of Columns: 91.25" (2,318 mm)

• Inside Dimensions:

  • H - Width Between Columns: 133.5" (3,391 mm)

  • I - Drive-Thru Clearance: 109" (2,769 mm)

• Runways:

  • J - Runway Width: 22" (559 mm)

  • K - Length of Runways: 255.5" (6,490 mm)

  • L - Width Between Runways: 40" (1,016 mm) or 45.25" (1,149 mm)

  • M - Runway Centerline: 67.5" (1,708 mm) or 72.5" (1,842 mm)

  • N - Outside Edge of Runways: 89.25" (2,267 mm) or 94.5" (2,400 mm)

• Minimum Wheelbase:

  • Rated Capacity: 185" (4,699 mm)

  • 75% Capacity: 160" (4,064 mm)

  • 50% Capacity: 135" (3,429 mm)

  • 25% Capacity: 110" (2,794 mm)

• Locking:

  • Locking Positions: 13

  • Lock Spacing: Every 4" / 100 mm

• Power Unit:

  • Motor: 220 VAC / 60 Hz. 1Ph.

  • Noise: 45 dB

• Shipping:

  • Weight: 6,109 lbs. (2,770 kg)

  • Dimensions: 266" x 27" x 36" (6,756 mm x 686 mm x 914 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
