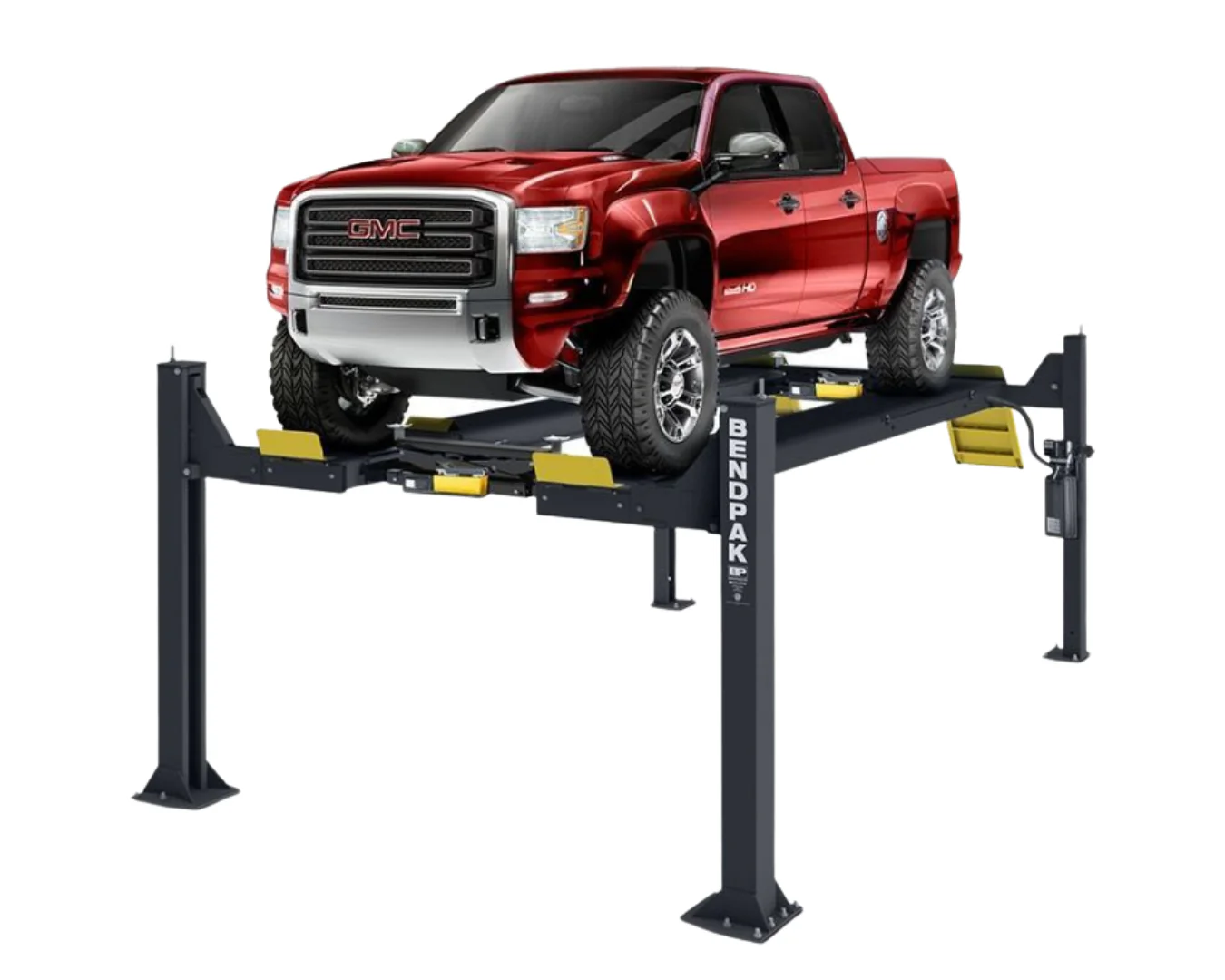

BendPak HDSO14P Open-Front Four Post Car Lift

The HDSO14P open-front four-post lift combines durability, ease of access, and efficiency, making it a top choice for high-performance service bays. Designed without a front crossbar, this lift allows easy vehicle entry and exit, making front-end adjustments faster and simpler. Equipped with an impressive 14,000-lb. lifting capacity, the HDSO14P is ideal for a wide range of vehicles, from small cars to full-size trucks. The open-front design is complemented by a patented, adjustable front outrigger tube system for precise leveling and enhanced vehicle servicing capabilities. With added features such as oversized cable sheaves and multi-level locking positions, this lift is engineered for long-term reliability and convenience.

Bullet Points:

• Lifting Capacity:

  • Maximum Lifting Capacity: 14,000 lbs. (6,350 kg)

• Design & Features:

  • Open-Front Design: Provides clear vehicle access without a front crossbar

  • Extended Runways: Perfect for servicing long-wheelbase vehicles

  • Adjustable Front Outrigger Tubes: For precise front-lift leveling, compensates for excessive loads and uneven floors

• Cable & Durability:

  • Oversized Dual-Hub Cable Sheaves: Huge 10.5” diameter sheaves for improved cable lifespan and reduced wear

  • Heavy-Duty Stainless Steel Cables: Four high-quality 1/2" aircraft cables with a breaking strength of over 14,000 lbs. each

  • Self-Lubricating Cable Sheaves: Reduces maintenance and enhances durability

• Safety Features:

  • Multi-Level Locking Positions: Adjustable for variable-height parking

  • Pneumatic Push-Button Safety Release: Releases all four independent safety locks simultaneously

  • Internal Anti-Sway Slider Blocks: For stable lifting operation

  • Independent Backup Slack-Cable Safety Latches: Additional safety feature to prevent cable failure

• Power & Efficiency:

  • Electric / Hydraulic Power System: Reliable and efficient lifting system

  • Single Hydraulic Cylinder: Mounted underneath the runway for compact operation

  • Automatic Leveling System: Includes multiple auto-leveling locking positions

• Customization & Accessories:

  • Adjustable Runways: For different tread widths

  • Rail Kit for Optional Accessories: Available for further customization

  • Roll-Back Kit & Rolling Bridge Airline Kit: Optional accessories for additional functionality

  • Optional Drive-Thru Ramps & Drip Trays Available

  • Optional 7,000-lb. Capacity Rolling Jacks: Available (Model RJ7W)

Bullet Points:

• Lifting Capacity:

  • Maximum Lifting Capacity: 14,000 lbs. (6,350 kg)

  • Max Capacity / Front Axle: 7,000 lbs. (3,175 kg)

  • Max Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

• Rise:

  • Min. Runway Height: 7.75" (197 mm)

  • Max. Rise: 70" (1,778 mm)

  • Max. Lifting Height: 77.5" (1,968 mm)

  • Time to Full Rise: 60 seconds

• Dimensions:

  • Overall Width (Front): 143.25” (3,639 mm)

  • Overall Width (Rear): 130” (3,302 mm)

  • Outside Length: 215.5" (5,474 mm)

  • Overall Length: 244.5" (6,210 mm)

  • Height of Columns (Front): 103.25" (2,622 mm)

  • Height of Columns (Rear): 92" (2,337 mm)

  • Width Between Columns (Front): 123” (3,124 mm)

  • Width Between Columns (Rear): 120” (3,046 mm)

  • Drive-Thru Clearance: 98” (2,489 mm)

  • Runway Width: 20" (508 mm)

  • Length of Runways: 197.5" (5,017 mm)

  • Width Between Runways: 42" (1,067 mm)

  • Runway Centerline: 65" (1,651 mm)

  • Outside Edge of Runways: 85" (2,159 mm)

• Wheelbase Capacity:

  • Rated Capacity: 140" (3,556 mm)

  • 75% Capacity: 120" (3,048 mm)

  • 50% Capacity: 100" (2,540 mm)

  • 25% Capacity: 80" (2,032 mm)

• Locking:

  • Locking Positions: 15

  • Lock Spacing: Every 4" (102 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Ph

  • Noise: 45 dB

• Shipping:

  • Weight: 3,238 lbs. (1,468.7 kg)

  • Shipping Dimensions: 221" x 22" x 35" (5,613 mm x 558 mm x 889 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
