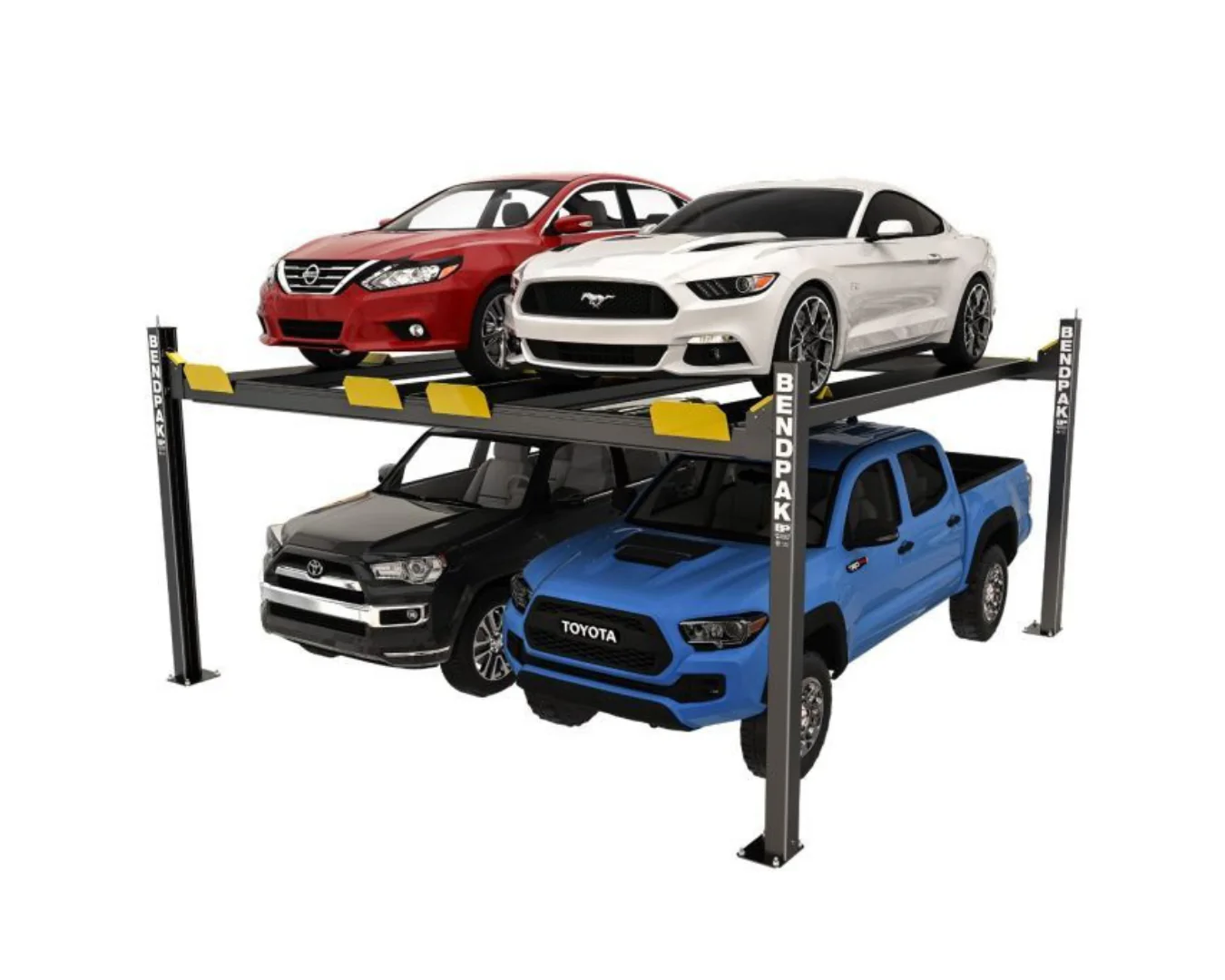

BendPak HD-9SWX Super Wide Four Post Car Lift

The HD-9SWX is the ultimate extended-length, high-rise, double-wide four-post lift designed to maximize your garage space. With its impressive 9,000-lb. lifting capacity, it’s perfect for parking, storage, and servicing a variety of vehicles, including long-wheelbase cars and trucks. The double-wide configuration allows for up to four vehicles to be stored in the space of two, making it an ideal solution for both residential garages and professional auto shops. Its extended length and extra height ensure ample clearance for vehicles of all sizes, while the easy-to-use design ensures smooth operation and durability.

Bullet Points:

• Lifting Capacity:

  • Maximum Lifting Capacity: 9,000 lbs. (4,082 kg)

  • Max Capacity per Car: 4,500 lbs. (2,041 kg) per side

• Design:

  • Freestanding Design

  • Double-Wide Configuration for quad-vehicle storage

  • Four Runways to accommodate multiple vehicle types

  • Super-Tall Rise for exceptional clearance

  • Extra-Long Ramp for easy access

• Runways:

  • Runway Width: Accommodates wide and narrow vehicles

  • Runway Length: Extended for larger vehicles

  • Rail-Kit included for optional accessories

  • Adjustable for Different Tread Widths

• Power and Lifting System:

  • Electric / Hydraulic Power System

  • Single Hydraulic Cylinder mounted underneath the runway

  • High-Speed Lifting for quick operation

  • Heavy-Duty 3/8" Aircraft Cable for durability

  • Oversized Sheave Diameter reduces cable fatigue

• Safety and Security:

  • Multi-Position Safety Locks in each column

  • Independent Backup Slack-Cable Safety Latches

  • Push-Button Pneumatic Safety Release

  • Internal Anti-Sway Slider Blocks in each column

  • Fully Enclosed Lifting Cables, Safety Locks, and Sheaves

• Durability and Maintenance:

  • Self-Lubricating Cable Rollers for long-lasting performance

  • Rugged 1.25" Roller Axles for heavy-duty use

  • Oversized Cable Rollers for smoother operation

  • Grease Nipples on sheaves and axles for easy maintenance

• Optional Features:

  • Drive-Thru Ramps for additional clearance

  • Drip Trays for convenience and clean operation

  • Solid Deck to increase storage capacity

  • Air / Hydraulic Rolling Jacks (4,500-lb. capacity, Model RJ-45)

  • Additional Aluminum Ramps can be purchased separately

Specifications:

• Lifting Capacity:

  • Maximum Lifting Capacity: 9,000 lbs. (4,082 kg)

  • Max Capacity per Axle: 4,500 lbs. (2,041 kg) per axle

• Rise:

  • Minimum Runway Height: 7" (178 mm)

  • Maximum Rise: 82" (2,083 mm)

  • Maximum Lifting Height: 89" (2,261 mm)

  • Time to Full Rise: 65 seconds

• Dimensions:

  • Overall Width: 202" (5,131 mm)

  • Overall Length: 198" (5,029 mm)

  • Overall Length with Ramps: 242.5" (6,159 mm)

  • Height of Columns: 102" (2,591 mm)

  • Width Between Columns: 192" (4,877 mm)

  • Drive-Thru Clearance: 178" (4,521 mm)

• Runways:

  • Runway Width: 19" (483 mm)

  • Runway Length: 188" (4,775 mm)

  • Width Between Runways: 34.25" (870 mm) or 41" (1,041 mm)

  • Runway Centerline: 56.25" (1,429 mm) or 62.75" (1,594 mm)

  • Outside Edge of Runways: 75.25" (1,911 mm) or 81.75" (2,076 mm)

• Wheelbase:

  • Rated Capacity Wheelbase: 135" (3,429 mm)

  • 75% Capacity Wheelbase: 115" (2,921 mm)

  • 50% Capacity Wheelbase: 95" (2,413 mm)

  • 25% Capacity Wheelbase: 80" (2,032 mm)

• Locking System:

  • Locking Positions: 17

  • Lock Spacing: Every 4" (102 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Ph

  • Noise Level: 45 dB

• Shipping:

  • Weight: 3,038 lbs. (1,378 kg)

  • Shipping Dimensions: 205" x 22" x 51" (5,207 mm x 558 mm x 1,282 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
