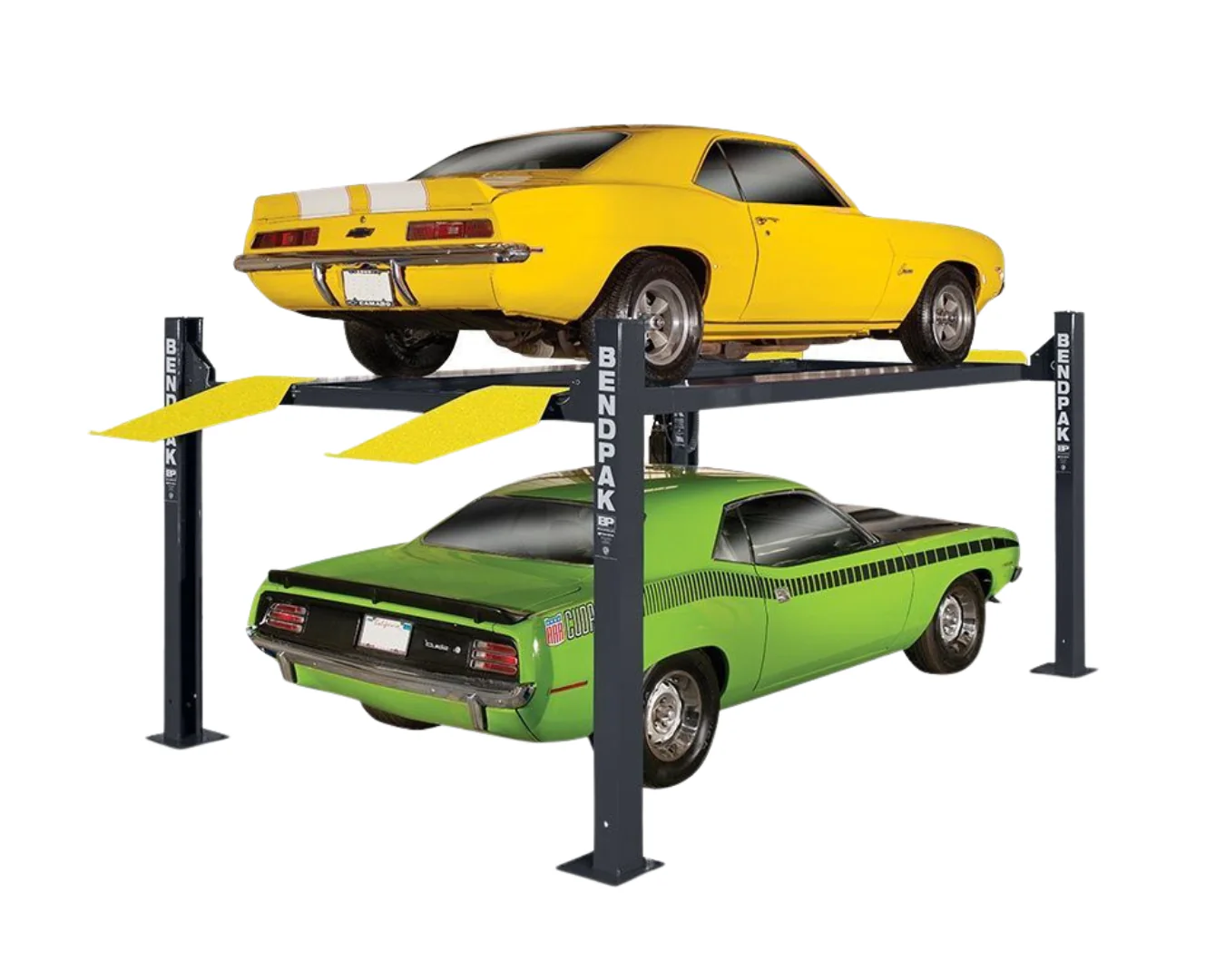

BendPak HD-9XL Four-Post Lift - 9,000-Lb Capacity

The BendPak HD-9XL is a top-tier four-post lift that accommodates vehicles with longer wheelbases. With a maximum lifting capacity of 9,000 lbs., this lift features runways approximately two feet longer than the standard HD-9, making it ideal for larger vehicles. The HD-9XL offers versatile configurations and optional accessories, such as casters, dip-trays, and jack platforms, to meet the specific needs of any shop.

Key Features:

• Max Lifting Capacity: 9,000 lbs. (4,082 kg)

• CE Approved and Certified to meet European Standard EN-1493

• Electric / Hydraulic Power System for reliable and efficient operation

• Heavy-Duty 3/8" Aircraft Cable ensures durability and smooth lifting

• Internal Anti-Sway Slider Blocks in each column for enhanced stability

• Oversized Self-Lubricating Cable Rollers to reduce wear and maintain smooth operation

• Multi-Position Safety Locks in each column spaced for secure holding

• Non-Skid Ramps for safe drive-on and off operation

• Rugged 1.25" Roller Axles for added strength and support

• Push-Button Pneumatic Safety Release for easy, secure operation

Additional Specifications:

• Runways include Rail Kit for optional accessories

• Single Hydraulic Cylinder mounted underneath the runway

• Adjustable Lock Ladders for various lifting configurations

• Optional Accessories: 4,500-lb. capacity jack (Model RBJ4500), casters, dip-trays, and jack platforms

• Optional Drive-Thru Ramps available for added convenience

Features:

• Lifting Capacity: 9,000 lbs. (4,082 kg)

• Max Capacity per Axle: 4,500 lbs. (2,041 kg) for both front and rear axles

• Max. Rise: 70" (1,778 mm)

• Overall Width: 110.25" (2,800 mm)

• Height of Columns: 88" (2,235 mm)

• Width Between Columns: 100.25" (2,546 mm)

• Drive-Thru Clearance: 86.5" (2,197 mm)

• Runway Width: 19" (483 mm)

• Length of Runways: 182.25" (4,629 mm)

• Adjustable Runway Spacing: Between 35" (889 mm) and 41" (1,041 mm)

• Wheelbase Capacity: Accommodates vehicles with a minimum wheelbase of 80" (2,032 mm)

• Locking Positions: 14 positions, spaced every 4" (102 mm)

• Motor Power: 220 VAC, 60 Hz, 1 Phase

• Noise Level: 45 dB for quieter operation

Additional Specifications:

• Shipping Weight: 1,696 lbs. (769 kg)

• Shipping Dimensions: 192" x 22" x 28" (4,877 mm x 558 mm x 711 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
