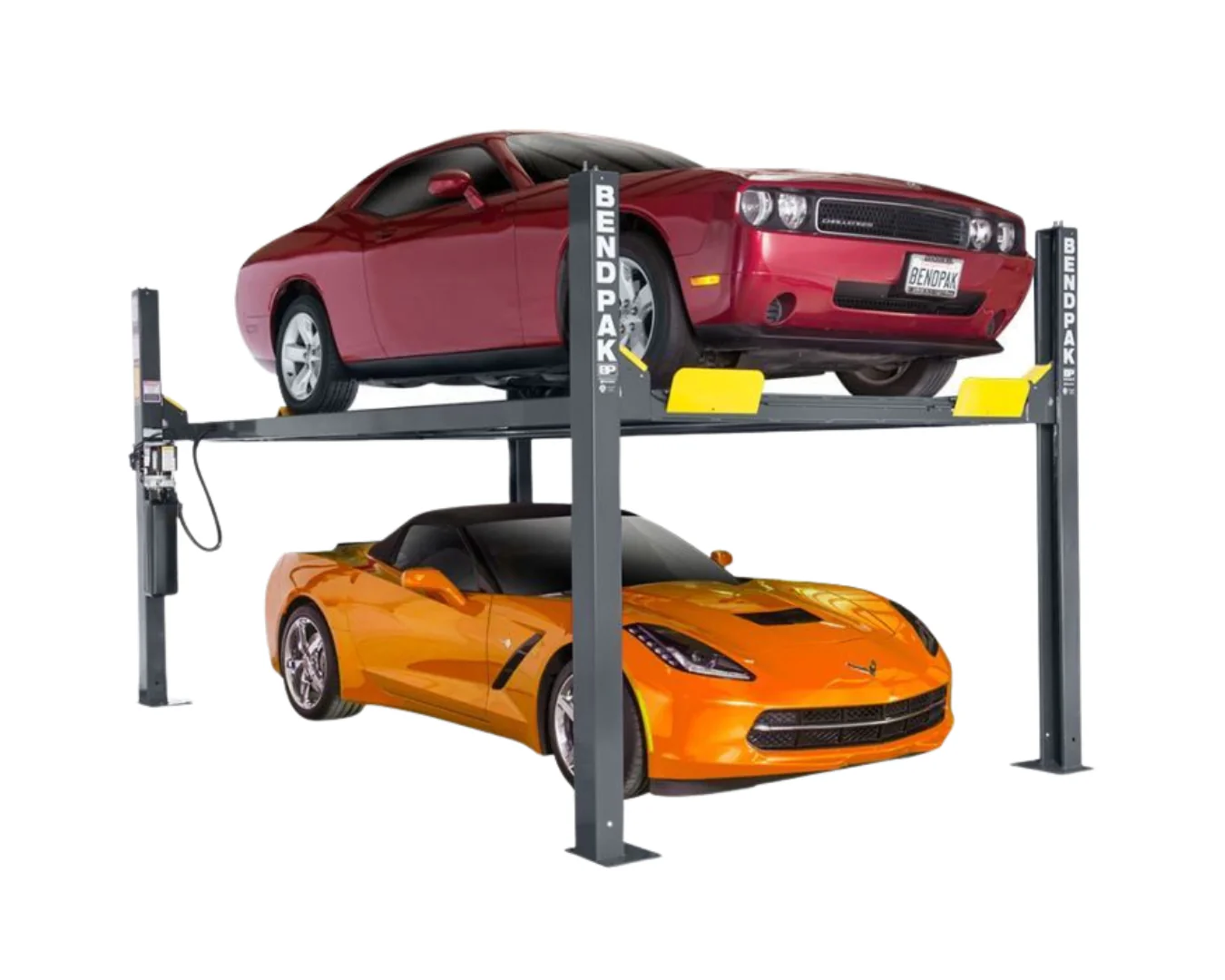

BendPak HD-9 Four Post Car Lift

The HD-9 series is a range of 9,000-lb. four-post lifts designed to offer maximum efficiency for both vehicle storage and service. Whether in a home garage or professional workshop, these lifts provide the perfect solution for lifting and storing vehicles. With a variety of optional features, including casters, drip trays, and jack platforms, the HD-9 series is versatile and customizable to fit your needs. The CE and ETL certified lifts meet European and U.S. safety standards, ensuring high-quality performance and durability.

Bullet Points:

• Lifting Capacity:

  • 9,000 lbs. (4,082 kg) maximum capacity

  • CE approved and certified, meeting European Standard EN-1493

• Design & Build:

  • Freestanding design for easy setup

  • Perfect for parking, storage, and service applications

  • Runways accommodate narrow and standard vehicles

  • Runways include rail-kit for optional accessories

• Power System:

  • Electric/hydraulic power system for smooth operation

  • Single hydraulic cylinder mounted underneath the runway

• Safety Features:

  • Fully enclosed lifting cables, safety locks, and sheaves

  • Internal anti-sway slider blocks in each column

  • Oversized self-lubricating cable rollers

  • Heavy-duty 3/8" aircraft cables

  • Multi-position safety locks in each column

  • Adjustable lock ladders for flexible use

  • Push-button pneumatic safety release

  • Independent backup slack-cable safety latches

• Customization & Accessories:

  • Customizable power unit location

  • Removable approach ramps for added drive-under clearance

  • Optional longer approach ramps for low-ground clearance vehicles

  • Optional drive-thru ramps for easy access

  • Optional drip trays available for fluid containment

  • Optional solid deck available to increase storage capacity

  • Optional 4,500-lb. air/hydraulic rolling jacks (Model RJ-45)

• Compliance & Certification:

  • ETL Approved for safety and reliability

Specifications:

• Lifting Capacity:

  • 9,000 lbs. (4,082 kg) maximum lifting capacity

  • 4,500 lbs. (2,041 kg) capacity per axle (front and rear)

• Height & Clearance:

  • Min. Runway Height: 5" (127 mm)

  • Max. Rise: 70" (1,778 mm)

  • Max. Lifting Height: 75" (1,905 mm)

  • Time to Full Rise: 45 seconds

• Dimensions:

  • Overall Width: 110.25" (2,800 mm)

  • Overall Length: 174" (4,420 mm)

  • Overall Length with Ramps: 200.5" (5,093 mm)

  • Height of Columns: 88" (2,235 mm)

  • Width Between Columns: 100.25" (2,546 mm)

  • Drive-Thru Clearance: 86.5" (2,197 mm)

• Runway Specifications:

  • Runway Width: 19" (483 mm)

  • Length of Runways: 158.25" (4,020 mm)

  • Width Between Runways: 35" (889 mm) or 41" (1,041 mm)

  • Runway Centerline: 56.75" (1,441 mm) or 63" (1,600 mm)

• Minimum Wheelbase:

  • Rated Capacity: 115" (2,921 mm)

  • 75% Capacity: 100" (2,540 mm)

  • 50% Capacity: 85" (2,159 mm)

  • 25% Capacity: 70" (1,778 mm)

• Locking Mechanisms:

  • Locking Positions: 14

  • Lock Spacing: Every 4" (102 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Phase

  • Noise Level: 45 dB

• Shipping:

  • Weight: 1,616 lbs. (733 kg)

  • Dimensions: 166" x 22" x 28" (4,216 mm x 559 mm x 711 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
