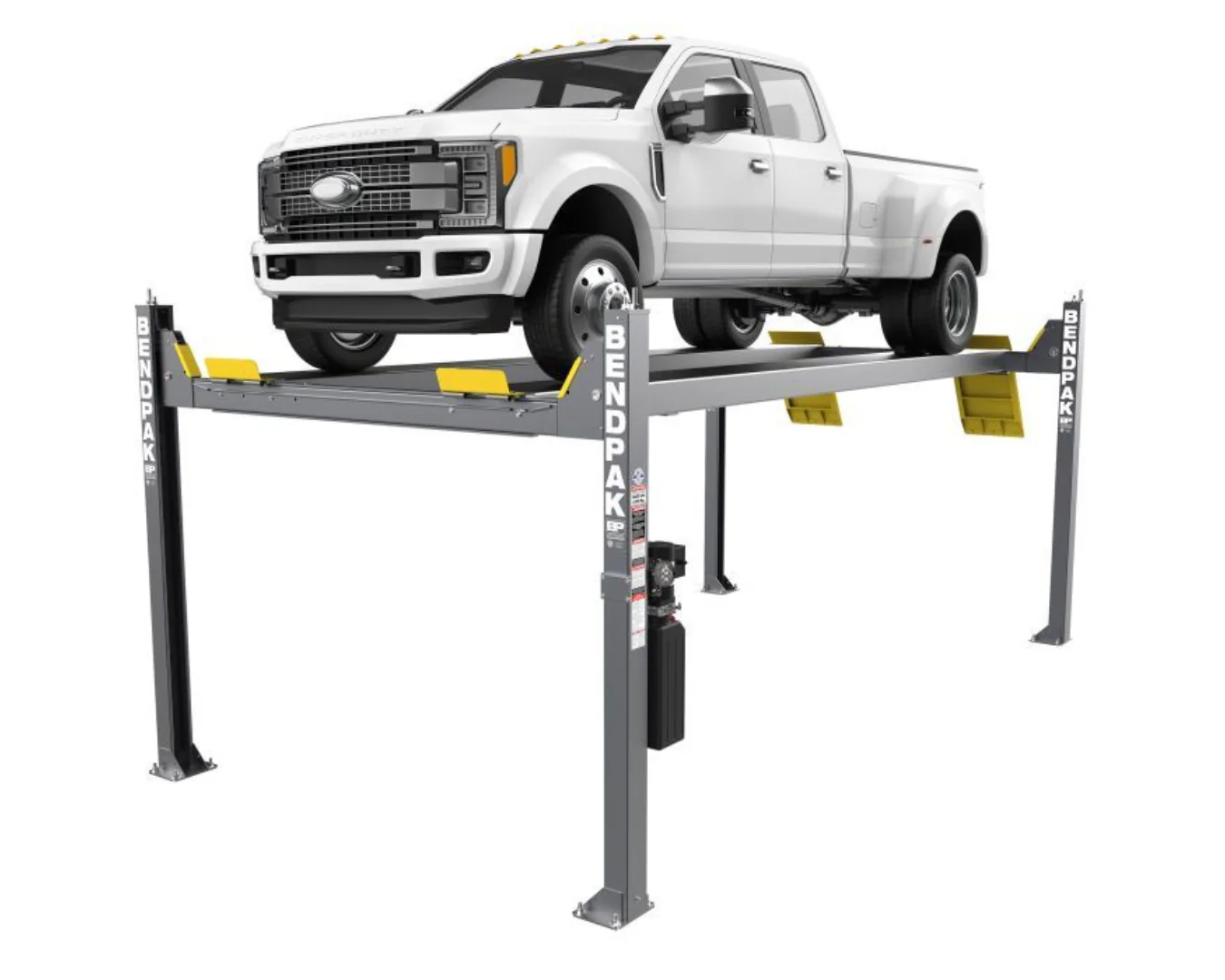

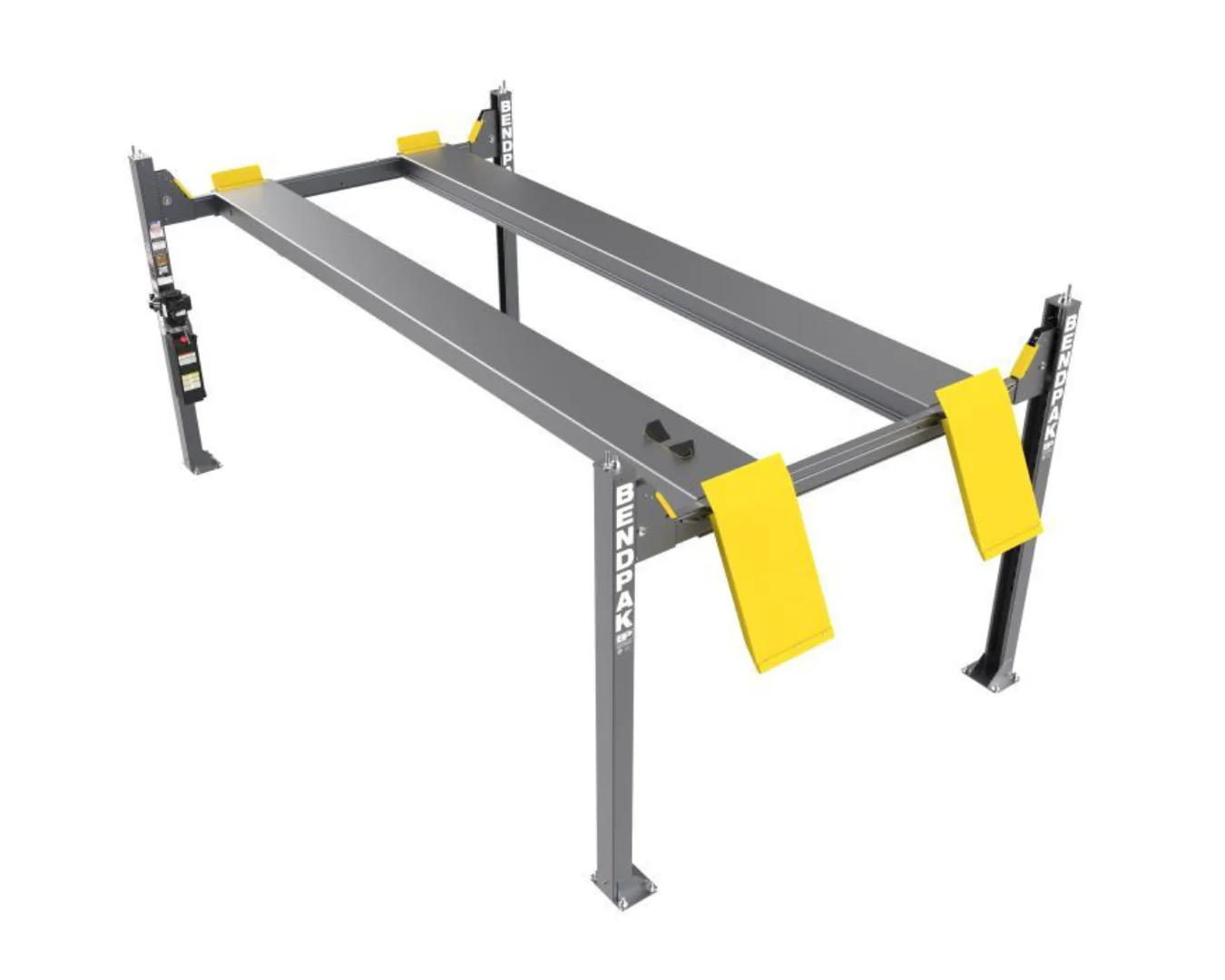

BendPak HDS-14XT High-Rise Four-Post Lift - 14,000-Lb Capacity

The BendPak HDS-14XT four-post lift offers an exceptional solution for handling large vehicles with ease. Designed with a 14,000-lb lifting capacity, this lift provides ample space for limousines, SUVs, extended trucks, and other heavy-duty vehicles. With 227.5-inch extended runways and a maximum lifting height of 89.5 inches, it ensures comfort and convenience for mechanics of all heights, while offering room to work underneath even the tallest vehicles. The heavy-duty construction ensures durability, and the extended approach ramps make it easier to work with low-clearance vehicles. The pneumatic push-button safety release and multi-position safety locks provide enhanced safety and ease of use.

Features:

• Lifting Capacity: 14,000 lbs.

• Runways Length: 227.5 inches

• Max Lifting Height: 89.5 inches

• Extended Approach Ramps for low-clearance vehicles

• Heavy-duty 1/2-inch aircraft cables for enhanced strength

• Oversized 10.5-inch diameter cable sheaves for reduced cable fatigue

• Multi-position safety locks in each column

• Pneumatic push-button safety release

• Internal anti-sway slider blocks in each column

• Independent backup slack-cable safety latches for added security

• Lifting Capacity:

  • 14,000 lbs. (6,350 kg)

  • Max. Capacity / Front Axle: 7,000 lbs. (3,175 kg)

  • Max. Capacity / Rear Axle: 7,000 lbs. (3,175 kg)

• Rise Specifications:

  • Min. Runway Height: 7.5" (191 mm)

  • Max. Rise: 82.75" (2,104 mm)

  • Max. Lifting Height: 89.5" (2,275 mm)

  • Time to Full Rise: 90 seconds

• Outside Dimensions:

  • Overall Width: 130" (3,302 mm)

  • Outside Length: 243" (6,172 mm)

  • Overall Length: 272" (6,908 mm)

  • Height of Columns: 104" (2,643 mm)

• Inside Dimensions:

  • Width Between Columns: 120" (3,048 mm)

  • Drive-Thru Clearance: 80.75" (2,052 mm)

• Runway Details:

  • Runway Width: 20" (508 mm)

  • Length of Runways: 227.5" (5,778 mm)

  • Width Between Runways: 34.5" (876 mm) or 41.5" (1,054 mm)

  • Runway Centerline: 57.5" (1,461 mm) or 64.5" (1,638 mm)

• Wheelbase & Load Distribution:

  • Rated Capacity (Wheelbase): 160" (4,064 mm)

  • 75% Capacity: 140" (3,556 mm)

  • 50% Capacity: 115" (2,921 mm)

  • 25% Capacity: 95" (2,413 mm)

• Locking Features:

  • Locking Positions: 18

  • Lock Spacing: Every 4" (102 mm)

• Power Unit:

  • Motor: 220 VAC / 60 Hz / 1 Phase

  • Noise: 45 dB

• Shipping Details:

  • Weight: 2,740 lbs. (1,242 kg)

  • Shipping Dimensions: 239" x 22" x 29" (6,070 mm x 558 mm x 737 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
