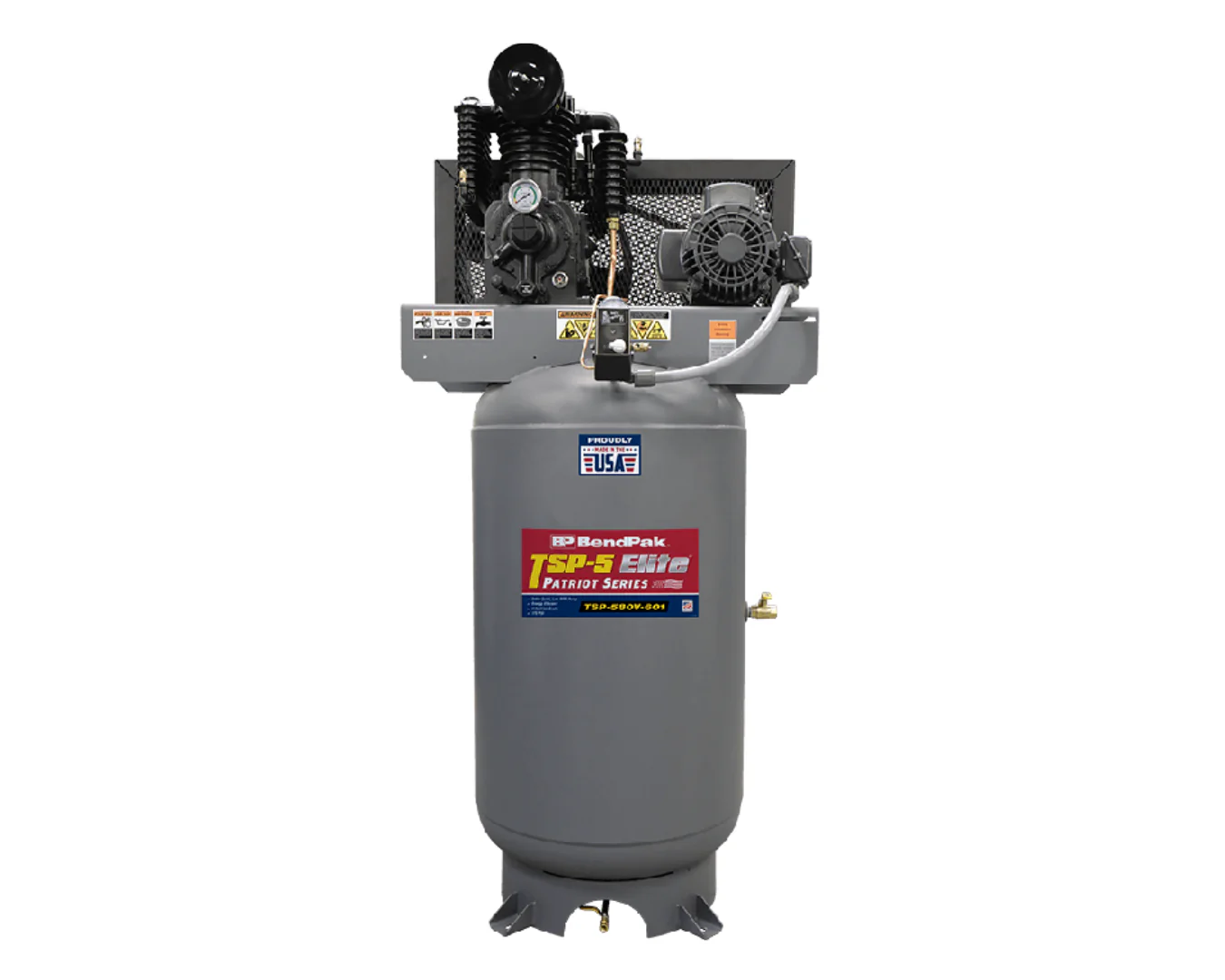

BendPak TSP-580V-601 Air Compressor

The BendPak TSP-5 Patriot Series Air Compressor is engineered for maximum durability and performance in demanding shop environments. Operating at a lower RPM than comparable compressors, it delivers quieter, cooler, and more efficient operation—ideal for automotive, industrial, and manufacturing applications. Featuring a two-stage, splash-lubricated hydraulic pump, anti-vibration pads, and a cooling fan system, this unit ensures extended service life with minimal maintenance. The TSP-580V-601 model is proudly assembled in the USA and built with premium cast-iron components for long-term reliability, stability, and smooth operation.

Features:

• Model: TSP-580V-601

• Assembled in the USA

• UL and ASME certified

• Extra-quiet, low-RPM pump

• 5 HP energy-efficient motor

• Two-stage, splash-lubricated hydraulic pump

• Cast-iron pump and heads for durability and heat resistance

• Finned cylinder configuration provides full 360° cooling

• Dual drive belts minimize load on bearings and reduce vibration

• Fully enclosed belt guard for added safety

• ASME-rated tank for high-pressure performance

• Large cooling fins and forced-air after-cooler for better heat dissipation

• Precision-honed cylinders improve oil control and efficiency

• Oversized ductile iron crankshaft for strength and wear resistance

• Tapered roller main bearings for full crankshaft support

• Precision-balanced flywheel with fan blades for optimized cooling

• Magnetic starter offers thermal overload protection

• ASME safety valve prevents over-pressure

• Corrosion-resistant tubing for longer component life

• Readily accessible disc valves for easy maintenance

• High-density aluminum alloy connecting rods for reduced weight

• Rugged cast-iron oil reservoir with sight glass and easy-drain system

• Automatic start/stop pressure switch

• Integrated pressure unloader valves minimize start-up heat

• Pressure gauge with service valve

• Includes four ½-inch anti-vibration pads

• Operates quietly with efficient cooling fan system

Specifications:

• Motor

  • Horsepower: 5 HP

  • RPM: 1,750 RPM

  • Voltage: 208-230 Volt AC

  • Phase: 1-Phase

  • Hertz: 60 Hz

  • Magnetic Starter: No

  • Amp Draw: 24

  • Recommended Breaker: 40 Amp Breaker

  • Noise: 72 dBA

• Pump

  • Style: 2-Stage / 2-Piston / Vertical

  • Pump RPM: 625 RPM

  • Material: Solid Cast Iron

  • Duty Cycle: Continuous

  • CFM: 17 CFM

  • CFM Rated @: 175 PSI

  • Max PSI: 175 PSI

  • Oil Sight Glass: Yes

  • Pump Type: Two-Stage

  • Pump Drive: Belt Drive

  • Oil Type: Oil Lubricated

  • Oil System: Full Pressure Lubrication

• Tank

  • Orientation: Vertical

  • Size: 80 gallon

  • Outlet: 3/4" Fitting

  • Electronic Drain Valve: Yes

  • Certification: UL, ASME

• Dimensions

  • Width: 24" (610 mm)

  • Depth: 71" (1,803 mm)

  • Height: 34" (864 mm)

• Shipping

  • Weight: 676 lbs. (306.6 kg)

  • Dimensions: 44'' x 40'' x 75'' (1,117 mm x 1,016 mm x 1,905 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
