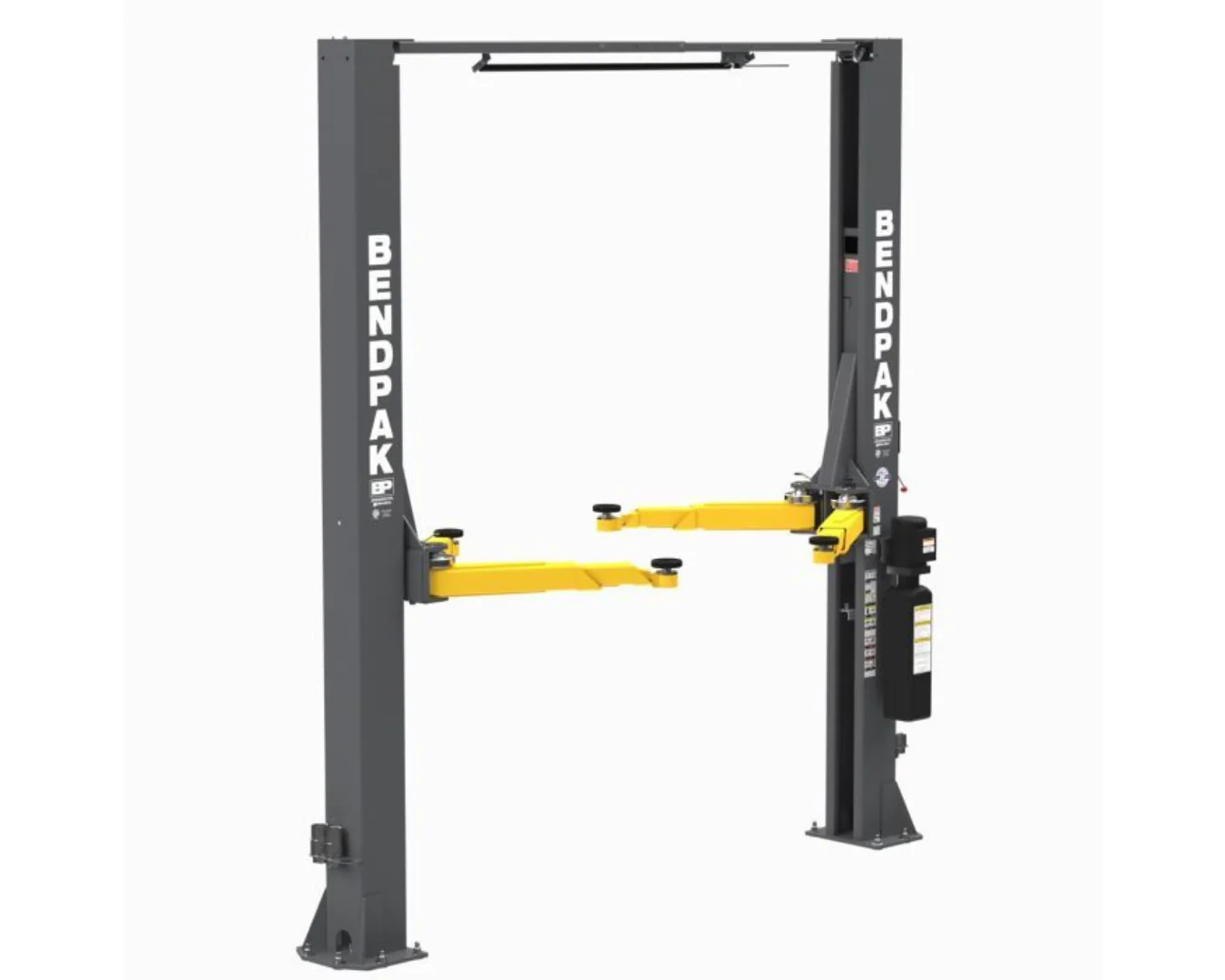

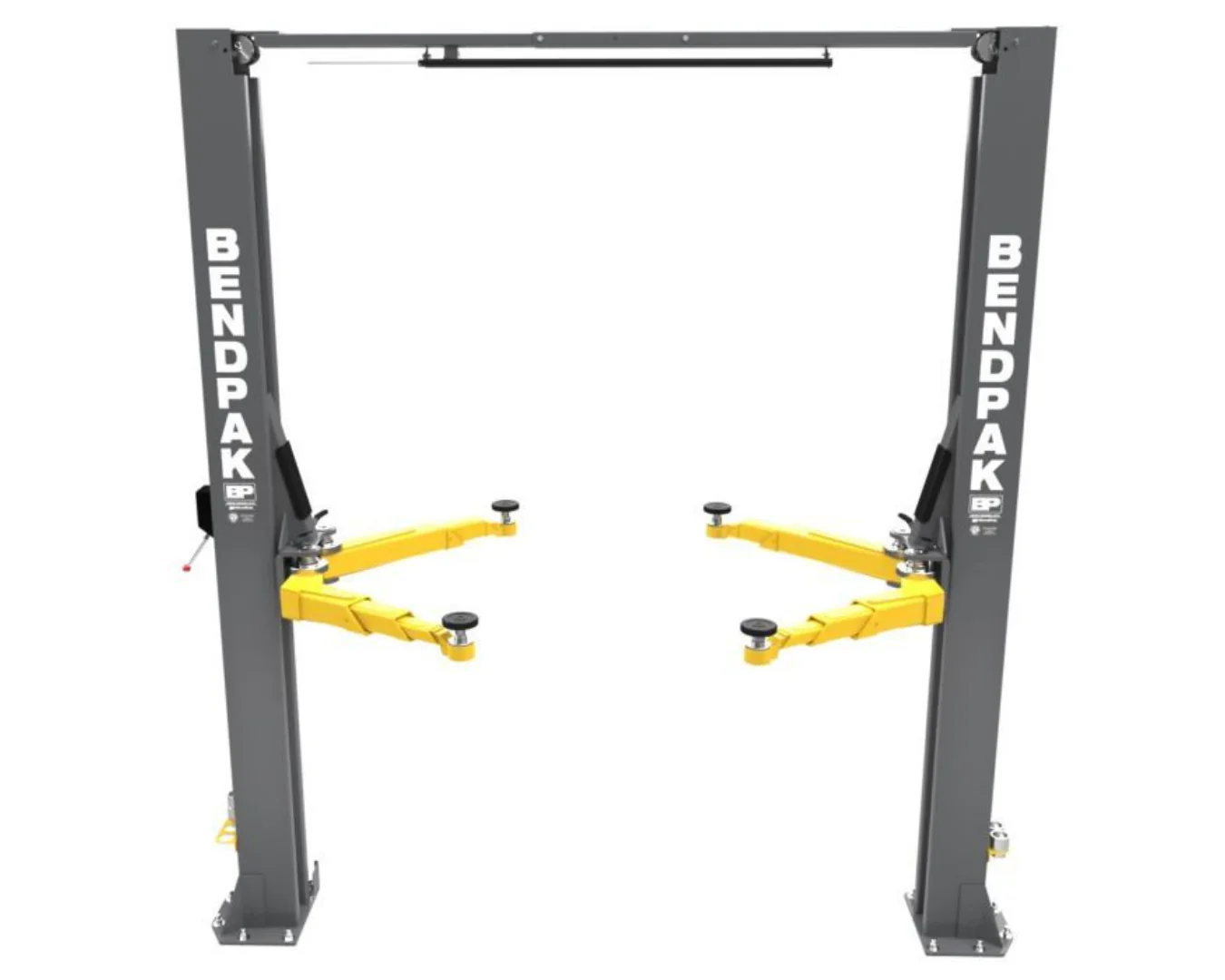

BendPak 10APX-181 PRO-Series Two-Post Car Lift – 10,000 lb Capacity – 181″ Extended Height

Future-Ready Performance

The 10APX-181 PRO-Series has been meticulously engineered to future-proof your shop. Designed to meet the demands of both today’s and tomorrow’s vehicles, this lift easily accommodates electric vehicles (EVs), heavy-duty trucks, and high-roof cargo vans. Its 181″ overhead beam provides ample clearance for taller vehicles, while its 10,000 lb lifting capacity ensures the strength needed for professional-grade service.

10APX-181 Key Features

• Durable powder-coat finish

• Expandable top beam for wide or narrow drive-thru configurations

• Double-telescoping screw pads for maximum versatility

• Padded overhead safety shut-off bar

• Exclusive Bi-Metric arm design for symmetric or asymmetric positioning

• Single-point safety release for convenient operation

• Drop-end arms provide a lower pad height for low-clearance vehicles

• Dual hydraulic direct-drive cylinders for smooth, synchronized lifting

• Oversized 53″ & 59″ carriages for superior rigidity and durability

• Electric / hydraulic HVLP power system for efficient, quiet performance

• Self-lubricating Dura-Glide UHMW polyethylene bearing system

• Safety locks in each column spaced every 3″

• Automatic arm restraints rated for over 2,000 lbs of side force

• 3/8″ (10 mm) multi-strand galvanized steel equalizing cables

• Oversized sheaves reduce cable fatigue for longer service life

• Four triple-telescoping arms for extended reach and flexibility

• ALI Certified for proven safety and reliability

Optional Add-Ons

WSA-100 Work Station

• Easy to install on any two-post or four-post lift

• Four 110 V GFI-protected outlets (20 A industrial rating)

• Two air-service outlets – one lubricated for tire inflation, one dry for pneumatic tools

• Integrated regulator, filter, oiler, and pressure gauge

• Nickel-plated ball-valve shut-off for longevity

• Powder-coated for durability

• Storage hooks for hoses & tools

• Moisture-resistant outlet placement above air service

Frame Cradle Pads

• Set of 4 heavy-duty pads with 60 mm pins

• Polyurethane-lined cradle protects frames from damage or slippage

• Ideal for trucks, SUVs, and body-on-frame vehicles

Medium Adapter (60 mm Pin)

• Set of 4 – 2.5″ height

• Perfect for uneven or high-clearance underbodies

Tall Adapter (60 mm Pin)

• Set of 4 – 5″ height

• Provides additional lift for larger vehicles

Specifications

Capacity

• Lifting Capacity: 10,000 lbs (4,536 kg)

• Max Capacity / Front Axle: 5,000 lbs (2,268 kg)

• Max Capacity / Rear Axle: 5,000 lbs (2,268 kg)

• Max Load per Arm: 2,500 lbs (1,134 kg)

Rise

• Rise: 75″ (1,905 mm)

• Rise + Pad Only: 79.5″ (2,007 mm)

• Rise + Pad + 63 mm Adapter: 89″ (2,261 mm)

• Min. Height + Pad: 4″ (102 mm)

• Time to Full Rise: ≈ 45 seconds

Outside Dimensions

• Height Overall: 157″ (3,988 mm)

• Width Overall: 135″ (3,429 mm) or 145″ (3,683 mm)

• Outside Columns: 127″ (3,226 mm) or 137″ (3,480 mm)

Inside Dimensions

• Inside Columns: 108.25″ (2,750 mm) or 118.25″ (3,004 mm)

• Drive-Thru Clearance: 92″ (2,337 mm) or 102″ (2,591 mm)

Arms & Pads

• K – Front Arm Reach (Min): 22″ (559 mm)

• Front Arm Reach (Max): 47.5″ (1,207 mm)

• Rear Arm Reach (Min): 29.5″ (749 mm)

• Rear Arm Reach (Max): 57″ (1,448 mm)

• Screw Pad Adjustment: 2″ (51 mm)

Power Unit

• Motor: 220 VAC / 60 Hz / 1 Phase

• Noise Level: < 70 dB

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
